1, TruColor Galvanized Steel C U Stud Ceiling Frame Purlin Forming Equipment advantage:

Durability

High Strength Steel

Versatile Product

High Speed

Easy operate

Long warranty

Technical support

2, TruColor Galvanized Steel C U Stud Ceiling Frame Purlin Forming Equipment Working Flow:

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

3, TruColor Galvanized Steel C U Stud Ceiling Frame Purlin Forming Equipment Main Technical dates:

1), Equipment operation: Automatic and Manual

2), Voltage: 380V 50Hz 3Phase or as your requirement

3), Sheet materials thickness: 0.3-0.8mm

4), Material width: As your requirement

5), Covered Width : As your drawing

6), Roll forming Machine Size: 4500mmx800mmx1200mm

7), Working Speed: 25m/min

8), Diameter of shaft: 50mm

9), Weight of the Machine: 2500-3500KGS

10), Material of rollers: Cr12

11), Total power (kw): 8kw

12), Cutting Way: Non-stop cutting way

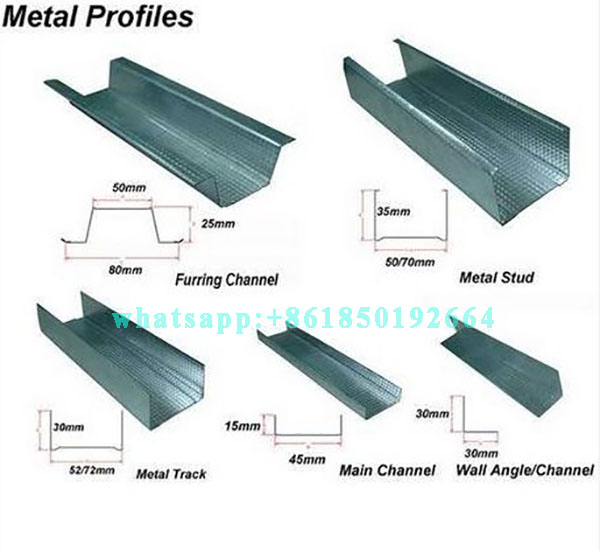

4, TruColor Galvanized Steel C U Stud Ceiling Frame Purlin Forming Equipment's Production:

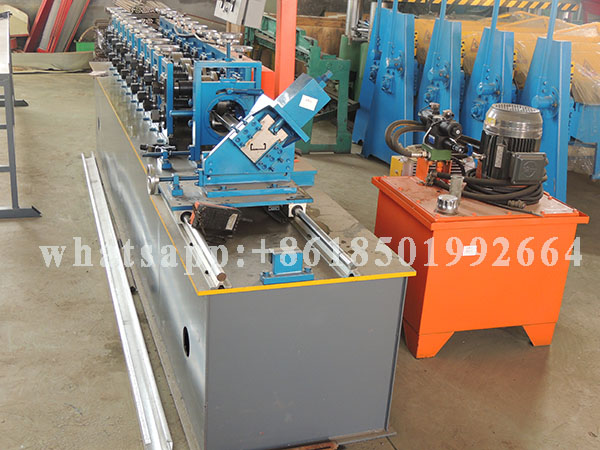

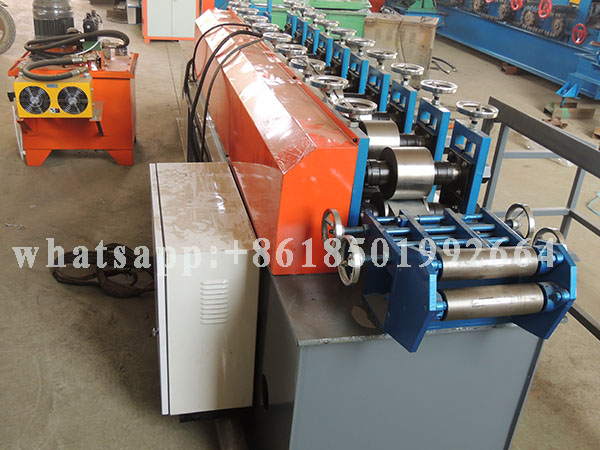

5, TruColor Galvanized Steel C U Stud Ceiling Frame Purlin Forming Equipment Show:

6, TruColor Galvanized Steel C U Stud Ceiling Frame Purlin Forming Equipment Feeding device:
