1, Working Flow OfSteel lightweight C Studs Ceiling Framing Profile Machine:

    De-coiler→Level device →Main roll forming machine→Hydraulic cutting→ Run out table

2, We design each Steel lightweight C Studs Ceiling Framing Profile Machine according to user requirment. Below technical parameters can be adjusted if needed.

   1). Suitable material: Color steel/Galvanized Steel

   2). Thickness of the plate: 0.3-0.8mm

   3). Input width of the plate: Based on drawing

   4). Width of the plate after forming: Based on drawing

   5). Productivity: 8-20m/min

   6). Rollers steps: 12 rows

   7). Roller material: 45# steel rolling chromium thickness 0.05mm

   8). Diameter of active shaft: 60mm

   9). Wall thickness of the main forming machine: 14mm

  10). Main forming machine body: 300 H steel

  11). Transmission chain: 1inch

  12). PLC control system,easy to operate,high precision and work stably

  13). Dimensions of major structure: 4000mm*900mm*1200mm

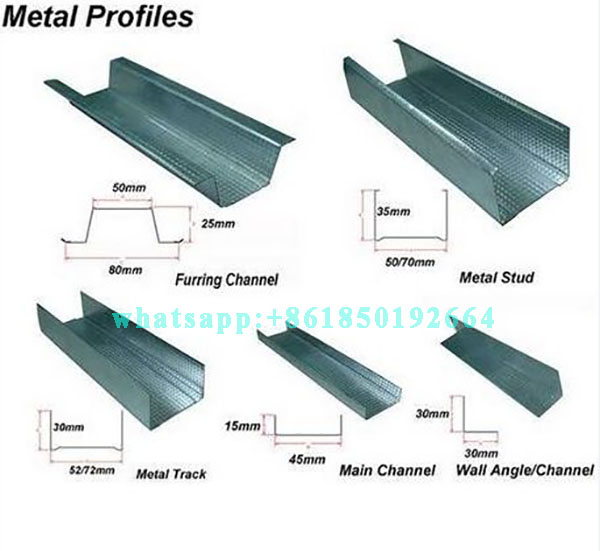

3, Steel lightweight C Studs Ceiling Framing Profile Machine Profile drawing:

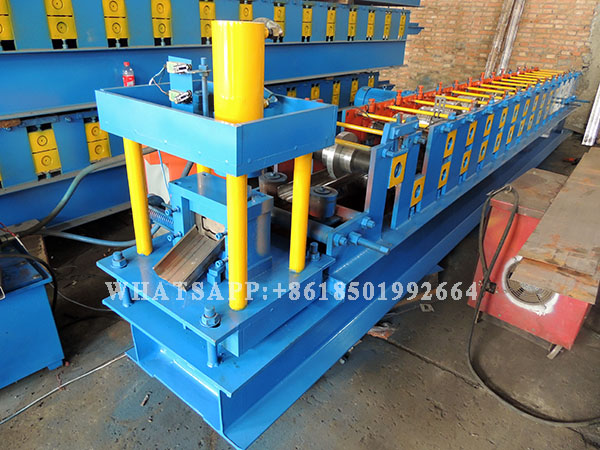

4, Steel lightweight C Studs Ceiling Framing Profile Machine:

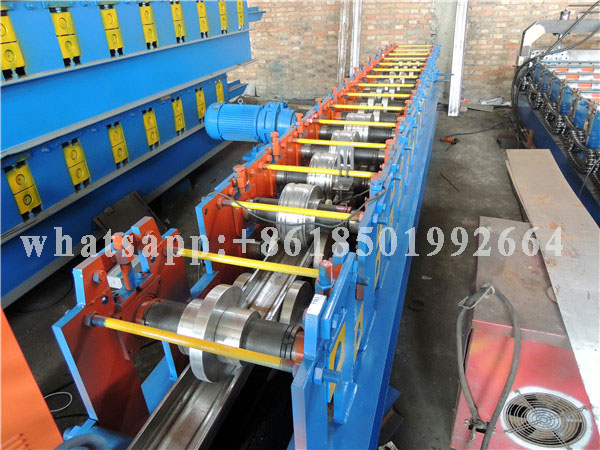

5, Steel lightweight C Studs Ceiling Framing Profile Machine Roller:

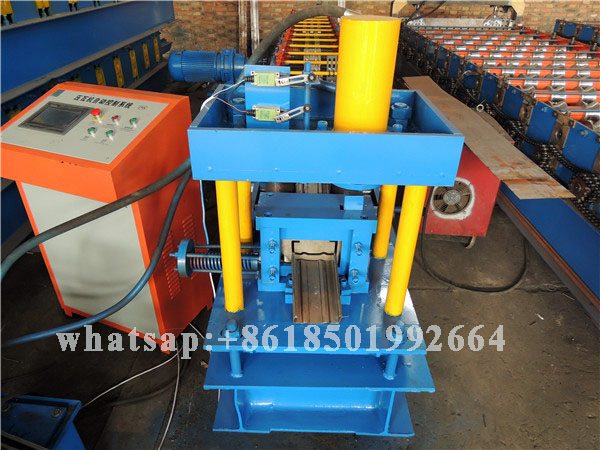

6, Steel lightweight C Studs Ceiling Framing Profile Machine Cutter:
