India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine
  • India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine

India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine Details:

Working materials thickness: 0.3-0.8mm

Feeding Width: 1450mm

Roller Stations: 16 Steps

Shaft Diameter:75mm

Productivity: 15m/min

Roller materials: 45#Steel with hard chrome treatment

Shater materials: 45#Steel

Machine Length: 7meters

Control Device: PLC control (Taiwan delta)

Drive way: By chain

Chain Size: 1.0 inch

Cutting device: Hydraulic cutting device

Un-coiler: one set 5 tons manual control decoiler

Main India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine shows in our factory:

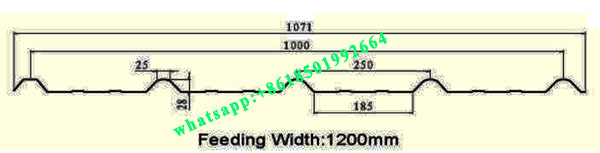

1), India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine’s product Profile:

India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine.jpg

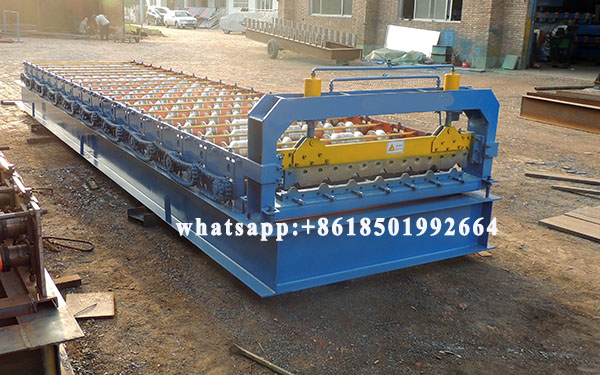

2）Main India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine Forming Body:

India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine.jpg

3) PLC Control Device and Pump Station Of India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine

India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine.jpg

4) 5 Tons Manual Uncoiler Of India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine:

India 1071 Type Metal Rib IBR Roofing Sheets Roll Forming Machine.JPG
