Steel Stud / Track Purlin Roll Forming Machine home > Products> Steel Stud / Track Purlin Roll Forming Machine
Philippines Galvanized Steel Sideguide Purlin Roll Forming Machine
  • Philippines Galvanized Steel Sideguide Purlin Roll Forming Machine

Philippines Galvanized Steel Sideguide Purlin Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Galvanized Steel Sideguide Purlin Roll Forming Machine

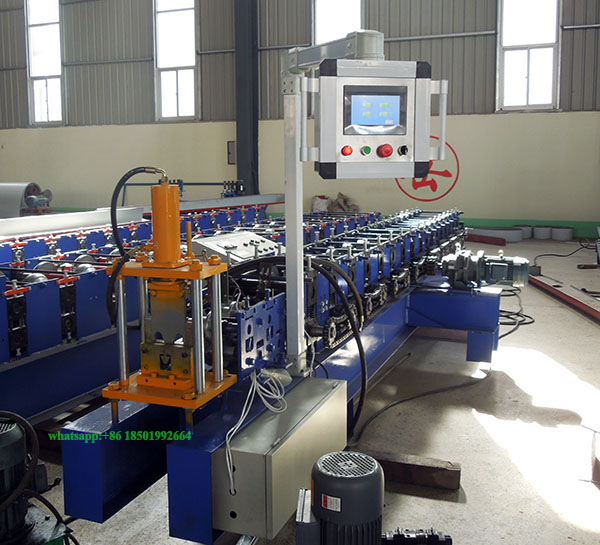

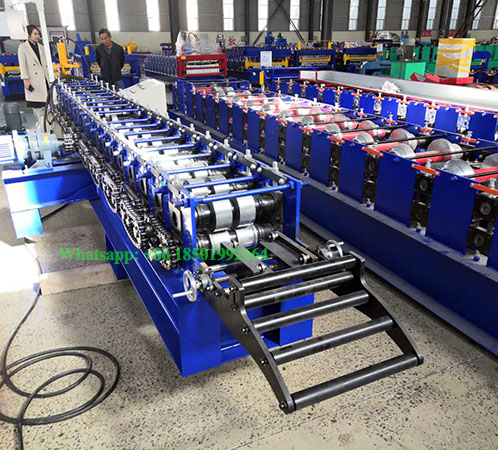

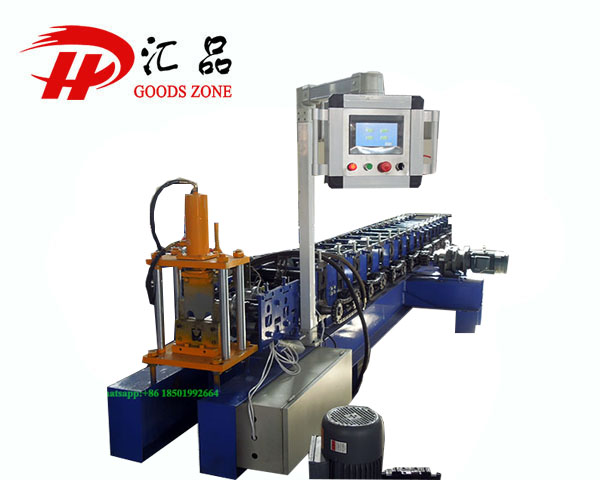

Steel Purlin Machine.jpg

1, Main technical date:

1),Raw material: Color steel coil and Galvanized steel coil

2), Feeding width: 173mm

3), Forming width: 40mm

4), Thickness of steel coil: 0.35-0.8mm

7), Shaft Station: 16 Stations

8), Rolling speed: 8-15m/min

9), Drive way: By chain

10), Size of Chain: 1.0mm

11), Material of Frame: 300 H steel

12), Thickness of middle plate : 14mm

13), Diameter of Shaft: 70mm (solid shaft)

14), Power of main motor: 4KW

2, Feeding device:

Sideguide Roller Shutter Door Machine.jpg

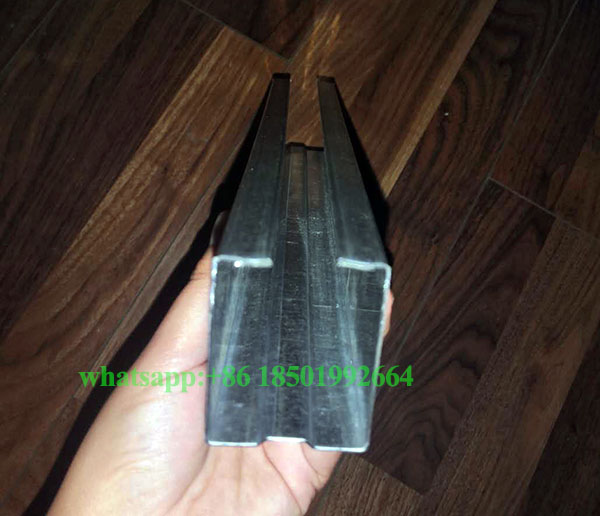

3, Product Of Philippines Galvanized Steel Sideguide Purlin Roll Forming Machine:

Sideguide plate.jpg
