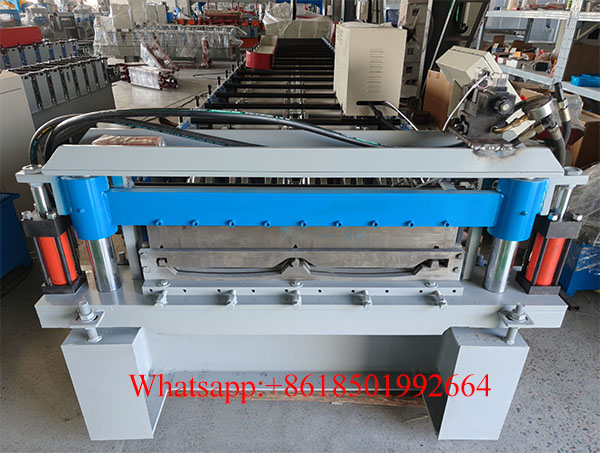

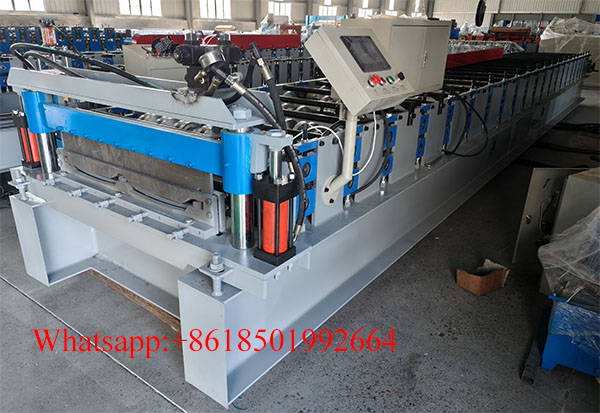

Joint Hidden Type Self Lock Roof Sheet Roll Forming Machine
Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description
Joint Hidden Type Self Lock Roof Sheet Roll Forming Machine
This type of roofing sheet can combined together by themself, no need nail and other tool. It is more easy to install and has a long working life.
Main Parameter Of Joint Hidden Roofing Sheet Machine
*Roller Station: 14 Station *Material of roller: 45#H steel plate with chrome *Material of Main body: 350mm H steel *Working Speed: 8-12m/min *Shaft: 70mm *Power: Main Power is 4KW, Hydraulic Pump: 3KW *Voltage: 380V 50HZ 3Phases or Customerization *Operation: Manual and Automatic *Driving Way: By Chain *Blade: Cr12, Heat Treatment
