Steel Door Frame Profile Roll Forming Machine
  • Steel Door Frame Profile Roll Forming Machine

Steel Door Frame Profile Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Steel Door Frame Profile Roll Forming Machine

1, Main Component

1), De-coiler: 1 Set

2), Main Forming Machine: 1Set

3), Cutting Device: 1Set

4), PLC Control Box: 1 Set

5), Pump Station: 1 Set


2, Main Technical dates:

1), De-coiler

（1）Max Coil Width：500mm

（2）Inner diamter：Φ450-Φ550mm

（3）Outside Diameter：1500mm

（4）Max capacity：1500KGS


2), Main Forming Machine

（1）Materials: Galvanized Steel Coil Or Color Coated Steel coil

（2）Shaft Station: 14 Stations

（3）Roller Materials：Polished high grade 45 # steel with HRC55-60° chromium coating

（4）Shaft Materials:Polished high grade 45 # steel with HRC55-60° chromium coating

（5）Shaft Diameter：70mm

（6）Wall Plate Thickness：16mm

（7）Machine Frame：350 H Steel Welding

（8）Main Power：5.5kw

（9）Chain size：1.0 inch

（10）Working Speed：8-12m / min


3, Cutter Of Steel Door Frame Profile Roll Forming Machine:

Door Frame Cut head.jpg

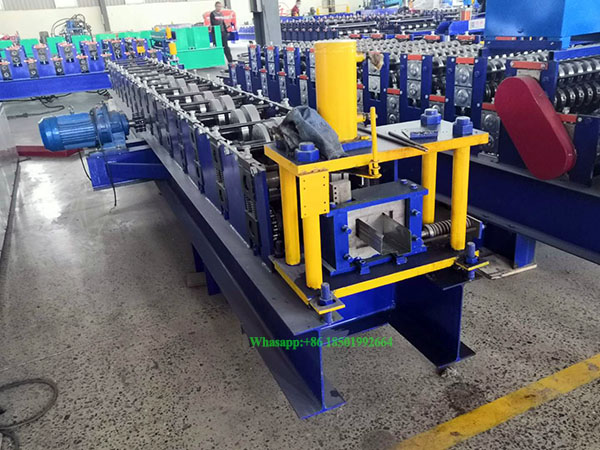

4, Main Steel Door Frame Profile Roll Forming Machine:

Door Frame Profile Machine.jpg
