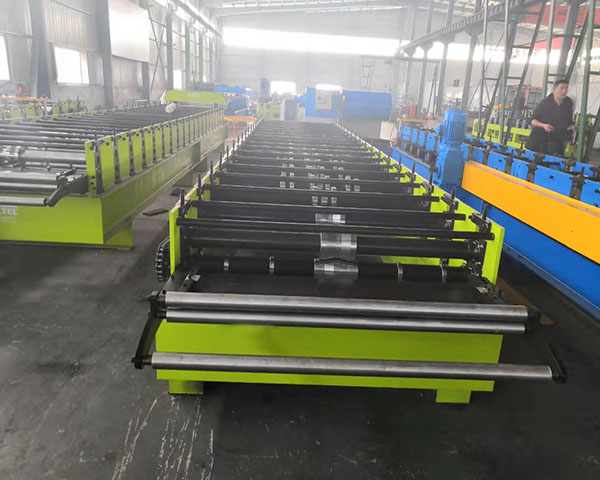

IBR Rib Trapezoid Steel Galvanized Roof sheet forming machine
Product Application :
This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.Most people use this kind steel panel for factory roof, house roof and warehouse and so on.

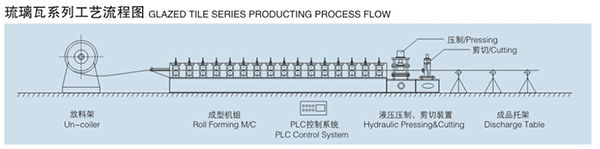

Working Progressing:

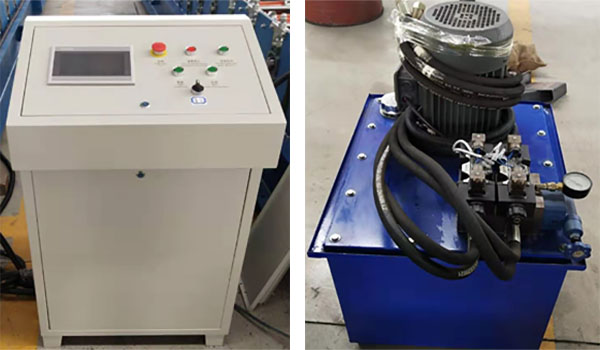

PLC control box and Hydraulic Pump Station:
Power: 4kw,Hydraulic oil:40#
Hydraulic oil into the hydraulic oil tank,the pump drive the cutter machine to begin the cutting job.the target piece`s length is adjustable and digit of it can be adjusted.Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC( Taiwan Delta brand), we also can install it based on your requirement. The control screen has english and chinese two language. It include touch screen and keyboard control two kinds.
Feeding Part:

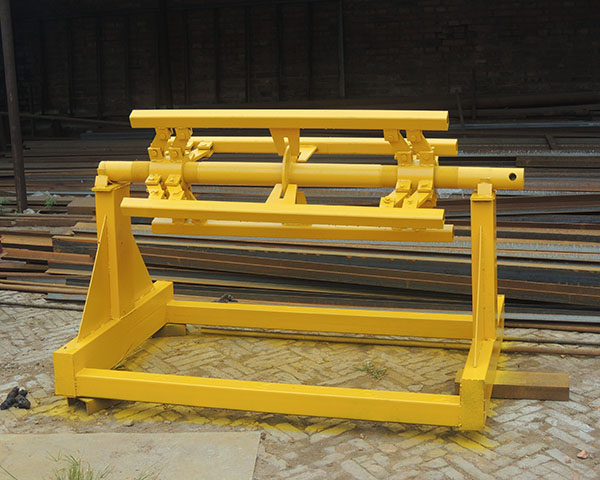

Uncoiler:
Carrying capacity :5 tons
Weight :2 tons
Size :1300mm*500mm*1000mm
Roll heart maximum diameter is 550mm minimum diameter is 450mm
Put the material width :914mm, 1000mm,1200mm, 1220mm,1250mm,1450mm or customized.
Welcome to visit our company and check machine working!
