Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine
  • Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine

Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

  The panel produced by Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine has high strength with big wave. This kind of roof sheet are widely used for steel buildings,

like warehouse, workshop and simple moving room.

1, Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine Main technical dates:

1), Steel Thickness: 0.3-0.8mm

2), Forming Speed: 8-20m/min

3), Roller stands: 16 stand -24 Stands

4), Roller Material: high-grade 45# steel

5), Shaft diameter : 75mm

6), Main Motor Power: 5.5kw

7), Hydraulic cutting Power: 4kw

8), Power Supply: 380V, 50HZ,3 phase

9), Tolerance: 1.0mm

10), Material of cutting: Cr12

11), Control system: PLC with touch screen

2, Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine Components:

  Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack.

3, Advantage for Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine:

Save space, more convenient

Easy operate, low maintenance cost

stable and durable

Low cost, high strength, short building period and re-cycle use

Save materials, no waste

Able to deal with stainless materials

4, Working Flow of Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine:

De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

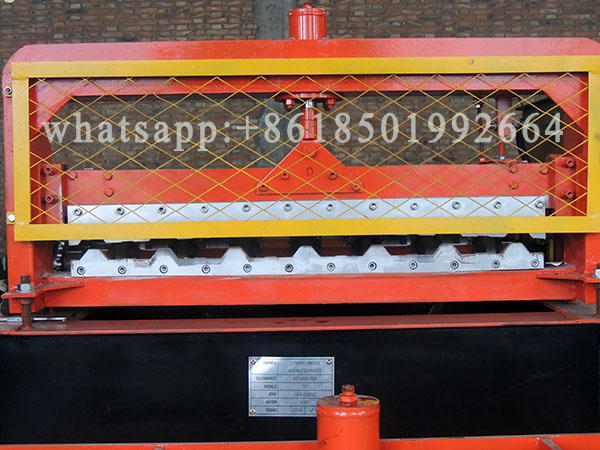

5, Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine Cutter:

Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine.JPG

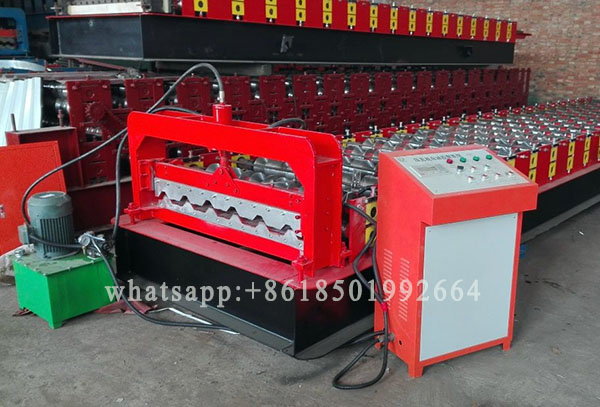

6, Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine:

Brazil Advanced Technology With China Price Roof Panel Roll Forming Machine.jpg
