Products Name | 860 Cover Width Multi Rib Roof Sheet Roll Making Machine |
Main Size | About 6.5m*1.4m*1.3m |
Application | 860 Modle Multi Rib Roof Sheet are widely use for warehouse or construction. |
Feeding Materials | Color Steel Coil Sheet and Galvanized steel Sheet |
Materials Thickness | 0.3-0.8mm |
Wall Panel | 16mm |
Drive way | By chain |
Chain size | 1 inch |
Control Model | Full automatic control and Manual control |
Big Frame | 350 H Steel |
Forming Shaft Station: | 15-16 Stations |
Roller Materials: | 45# Steel |
Machine's Color | can customize |
Voltage | 380V/50HZ/3PH ( Also can customize) |
Main Motor | 5.5KW |
Decoiler | one manual control for free |

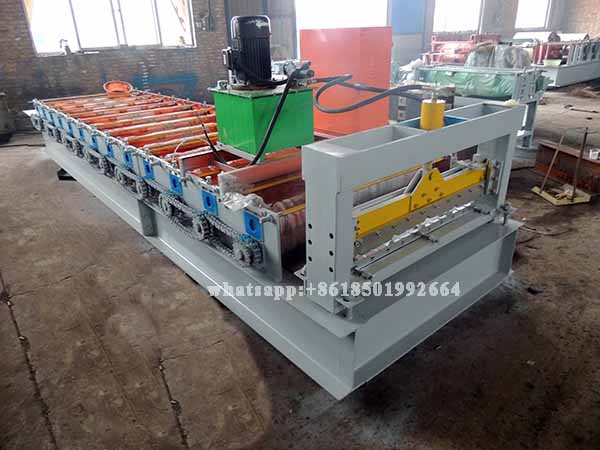

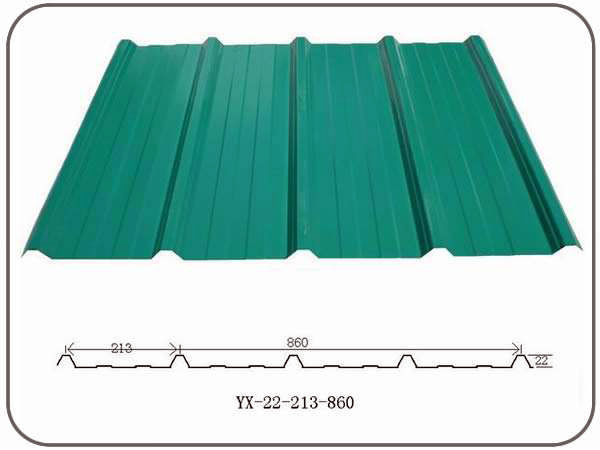

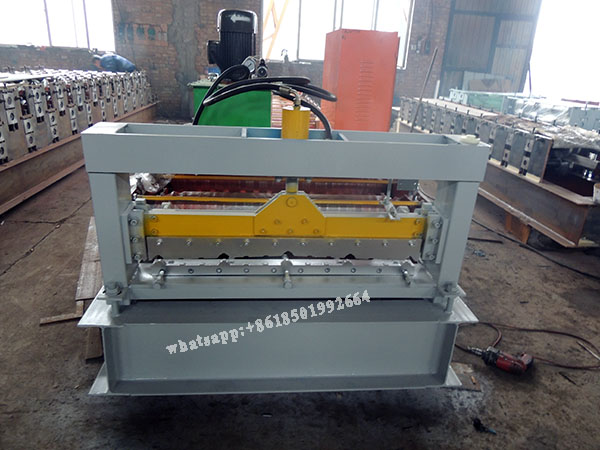

1), 860 Cover Width Multi Rib Roof Sheet Roll Making Machine produce sheet profile: 2), 860 Cover Width Multi Rib Roof Sheet Roll Making Machine Cutter show: 3), 860 Cover Width Multi Rib Roof Sheet Roll Making Machine Main Forming Body: More details about 860 Cover Width Multi Rib Roof Sheet Roll Making Machine, welcome to contact us! |
