Base is made of high tensile strength H beam with precision welded and good rigidity; shaft, rollers and all components are manufactured precisely to have long lifetime; efficient design and easy maintenance.

2, Main parameters Of Minimalist Step Tile Profile Machine:

1), Material thickness : 0.3-0.6 mm

2), Working speed : 8-12 m per minute

3), Processing material: color coated steel plate, galvanized steel plate

3, The Work Flow Of Minimalist Step Tile Profile Machine.

1), Decoiler

Work type: passive type

Structure: Steel channel welded for the basic frame

Usage:To support the coil and make the uncoiling

Loading capacity : 5 tons

Inner diameter: 450-550mm (manual adjustment)

Brake system: manual brake

2), Roll forming machine

Feeding device : One set guiding roller. Steel plate welded platform to carry the sheet and feed into roll forming system. Feeding width is adjustable with the handle wheels.

Shaft material : 45# STEEL

Shaft diameter : 70 mm Tempering treatment to prevent deformed and improve hardness

Roller : 45# steel , Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life

Rolling station : 16 rolling stations

Machine basic frame : 350# H steel welded

Work power : 5.5 Kw

Transmission : By Chains with cover

Control Model: Hydraulic Control System

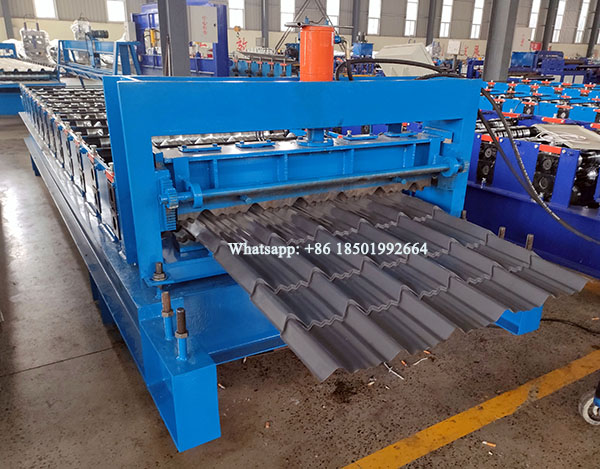

Minimalist step tile profile Roll Forming Machine.jpg
