Step Tiles Metal Roofing Panel Sheet Forming Machine home > Products> Step Tiles Metal Roofing Panel Sheet Forming Machine
Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine
  • Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine

Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

1, Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine description:

    Product Name: Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine

    Main machine size: About 6.5m*1.4m*1.3m (L*W*H)

    Main body materials: 350 H Steel

    Shaft station: 15 Stations

    Shaft materials: 45# Steel

    Roller materials: 45# Steel

    Drive way: By chain

    Chain size: 1 inch

    Wall plate: 16mm

    Control device: Full Automatic control and manual control

    Control panel brand: Taiwan delta

    Feeding materials: based on confirmed drawing

    Roof profile step length: customize

    Materlas thickess: 0.3-0.7mm

    Effective width: based on drawing

2, Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine Working process:

   Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

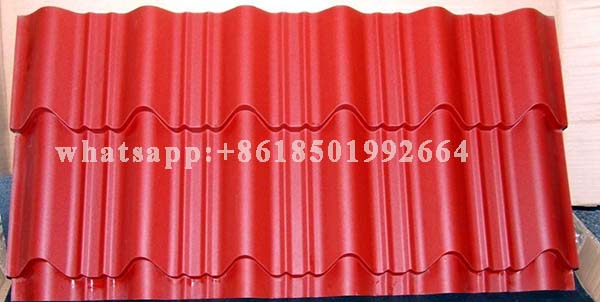

3, Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine Product:

Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine.jpg

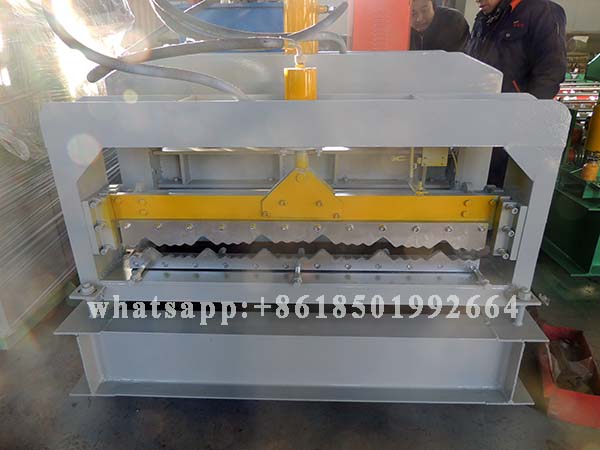

4, Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine Cutter:

Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine.JPG

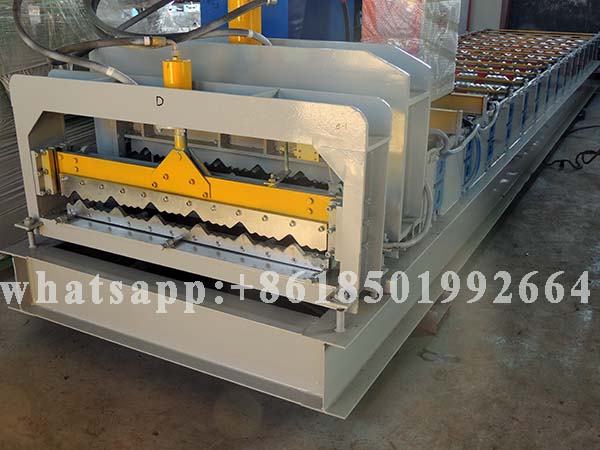

5, Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine:

Oven Baked Clour Aluminium Steptiles Roofing Sheet Corrugation Machine.JPG
