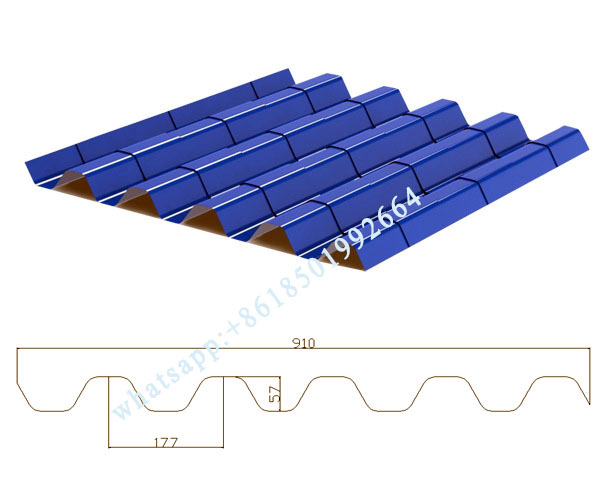

1). Processing Material: Pre-painted Color Steel Coil ,Galvanized Steel coil
2). Processing Thickness(mm): 0.3-0.7mm
3). Material of Rollers: 45# steel, with hard chrome coated
4). Diameter of Shaft: 75mm
5). Production Speed: 0-20m/min
6). Roller Driven: Chain Transmission
7). Cutting Model: Hydraulic Profile Cutting
8). Length Measurement: Encoder
9). Control Style: PLC
10). Operation Model: Full Automatic Control
11). Total Power: 8kw
12). Voltage: 380V 50HZ or at buyer's request
13). Roller station: 24 Steps.
14). Machine Frame: 350 H Steel
15). Cutter Mould: Cr12
16). Machine weight: About 10 Tons
17). Machine size: 9500mm*1500mm*1400mm
