1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width: 1000mm
3), Effective width: 820mm
4), Thickness:0.3-0.7mm
5), Machine Weight : About 3.5Tons
6), Dimension of machine: About 6.5m*1.4m*1.3m
7), Shaft station: 13 Stations
8), Rolling speed: 0-6m/min
9), Transmission: By chain
10), Size of Chain: 1.0 inch
11), Material of Frame: 350 H steel welding
12), Thickness of middle plate : 16mm
13), Diameter of Shaft : 70 mm
14), Shaft materials: 45# Steel plated hard
15), Material of Roller: 45# Steel plated hard
16), Power of main motor: 4KW
17), Cutter materials: GCr12 steel with quenched treated 60-62°C
18), Power of pump station : 3KW
19), Control system: PLC Control Box
20), Cutting way: Automatic And Manual two control way
21), Cutting accuracy: ±2mm
22), Voltage: 380V/50HZ,3PH ( also can do based on your requirement)
23), Machine color : Do based on you need

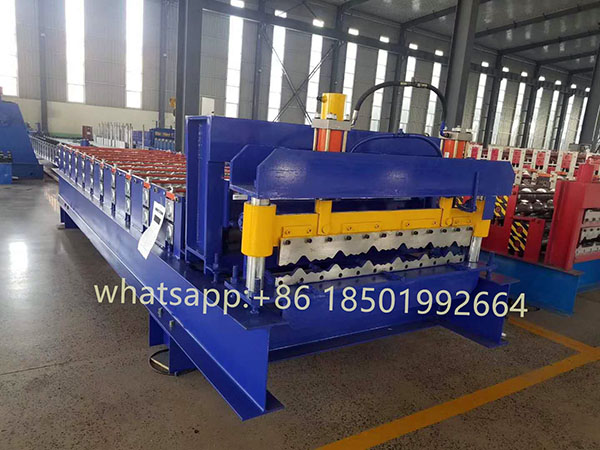

1), Main Forming Body.......1 Set
2), Hydraulic Cutter.............1 Set
3),PLC Control device.........1 Set
4), Pump station..................1 Set
5), Motor................................1 Set
6), Manual un-coiler for steel coil(5tons).......1 Set
7), Easy broken parts We will sent you some easy broken parts for free together with the machine
