0.18mm Aluminium Glazed Sheet Roll Forming Machine
  • 0.18mm Aluminium Glazed Sheet Roll Forming Machine

0.18mm Aluminium Glazed Sheet Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

0.18mm Aluminium Glazed Sheet Roll Forming Machine

  This aluminium sheet machine work with 0.18~0.3mm thickness and 914mm width of material. As to this kind of raw material is very soft, it need better technology for deaugin machine and higher accuracy of rollers&mould for make sure the finish sheet no any scratch/wrinkle of the surface of sheet.

  This aluminium sheet roll forming machine is easy to operate. Customer just need set up the length and piece of sheet that he need by PLC, then machine can automatic work.

Specification Of Aluminium Sheet Roll Forming Machine


*Suitable Material: Aluminium

*Material Thickness: 0.18~0.3mm *Material Width: 914mm of according to requirements
*Diameter of Shaft: 70mm *Drive Way: By Chain
*Sidewall Thickness: 20mm *Main Frame:300H steel

*Motor Power:5.5KW+4KW *Speed: 2-6m/min
*Cutting Device: Hydreulic Cutting *Material Of Blade: Cr12
*Roller Station: 15 steps(according to the profile)

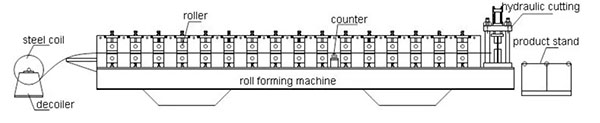

Wording Flow Of Aluminium Sheet Roll Forming Machine

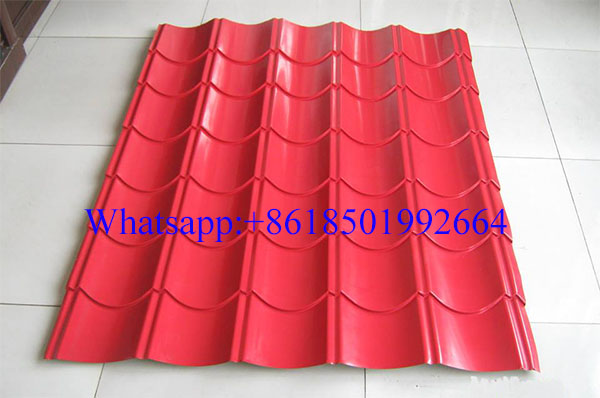

Finish Aluminuim Sheet

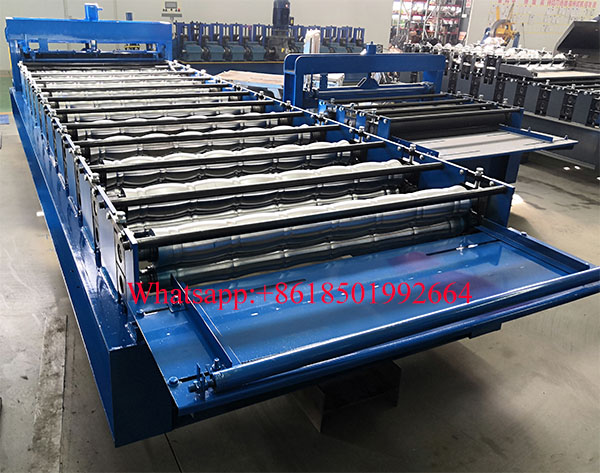

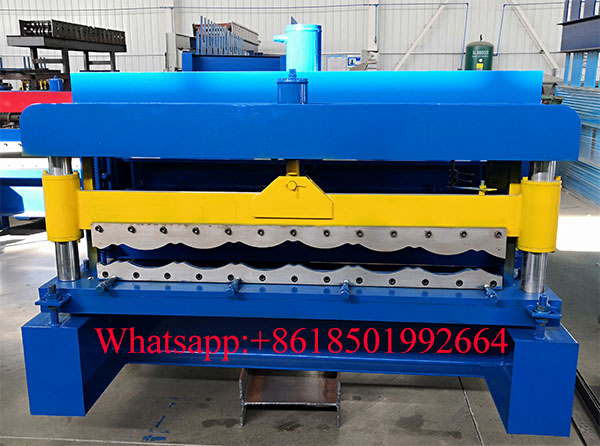

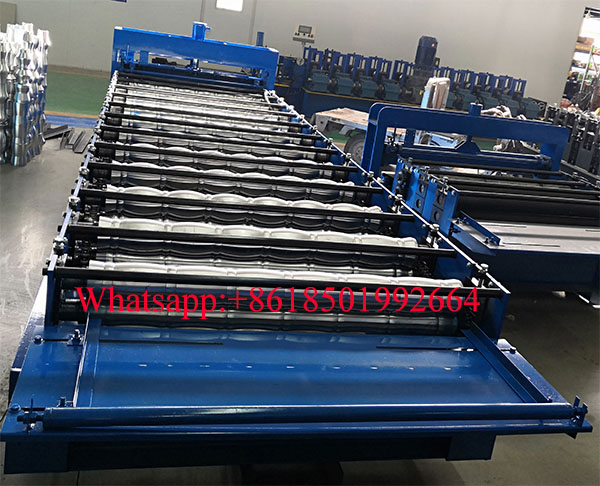

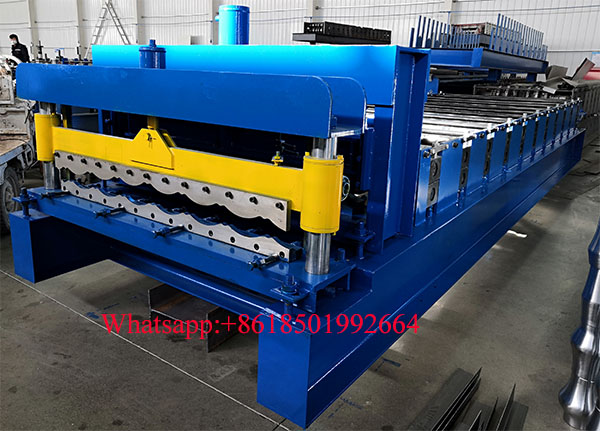

More Pictures Of Aluminium Sheet Roll Forming Machine

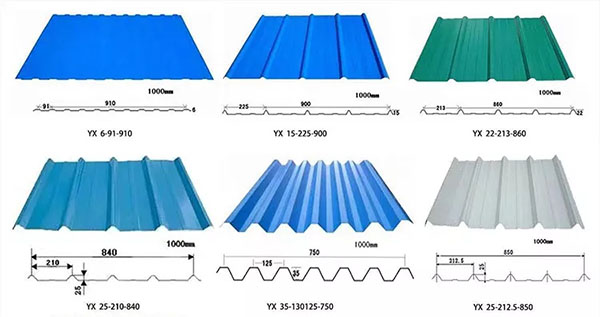

Different Kind Of Roofing Sheet

We can design different kind of roofing panel machine according to customer's requirements

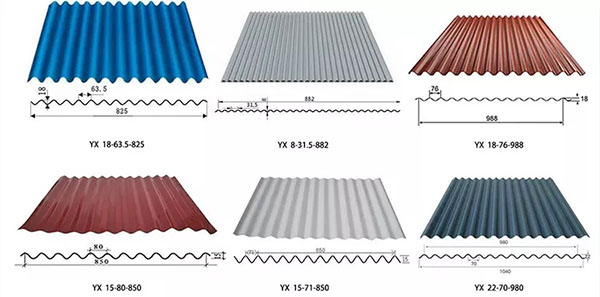

Corrugated Sheet(Water Wave Panel)

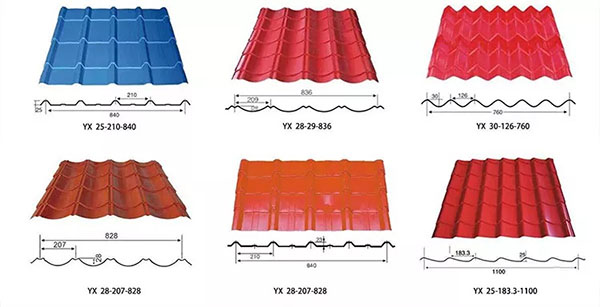

Glazed Roofing Sheet(Step Panel)

Trapezoidal Roofing Panel (IBR Sheet)

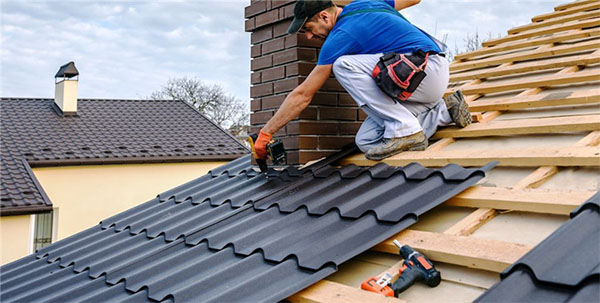

Application
