Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting
  • Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting

Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

Main  of Component Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting

1) Decolier: 1SET

2) Forming machine: 1SET

3) Cutting part: 1SET

4) Control system: 1SET

5) Hydraulic system: 1SET

6) Output table: 1SET

Decoiler of Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting:

1) Material coil inner diameter : 450-550mm

2) Max coil width: 200mm

3) carrying capacity: 1.5T-3T

Main Technical dates of Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting:

1), Roller station: 12 stations

2), Shaft material: 45# steel

3), Outer diameter: 40mm

4), Roller material: Cr12Mov

5), Forming speed: 10-15m/min

6), Transport: Gear draving

7), Cutting mold: hydraulic cutting

8), Length mesurement: counter

9), Main motor:4kw

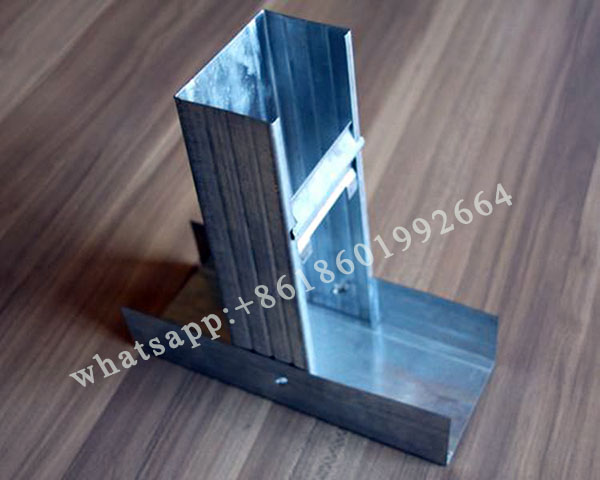

Product Profile of Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting:

Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting.jpg

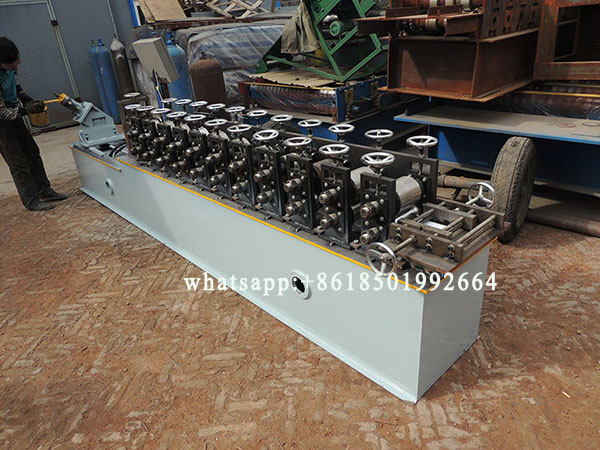

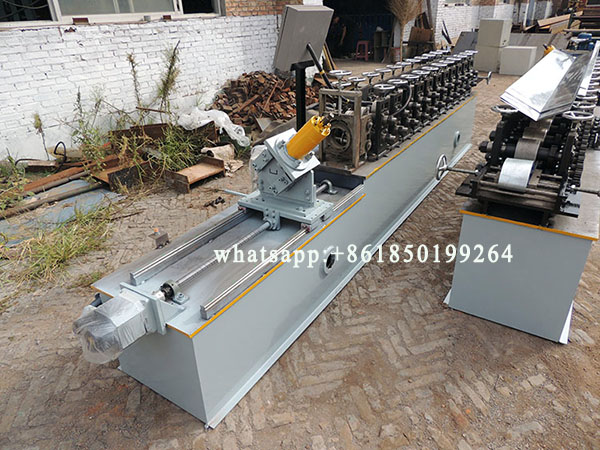

Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting:

Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting.JPG

Cold Rolled CU Profile Channel Sheet Manufacturing Machine with Automatic Cutting.JPG
