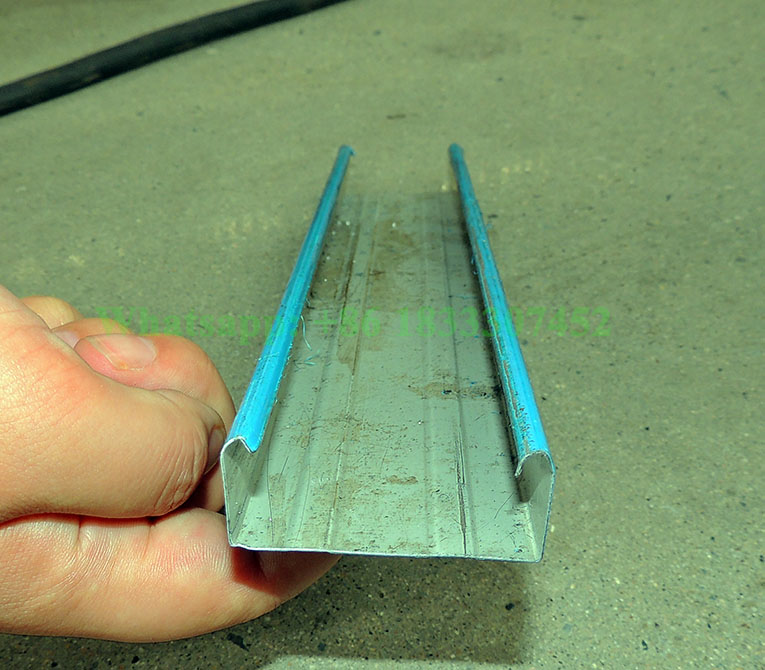

1, C Ceiling Machine Product:
2, Main C Ceiling Profile Roll Forming Machine Parts:
1. Manual decoiler
1) Capacity:1.5T
2) Coil inner diameter:350-450mm
3) Coil width:150mm

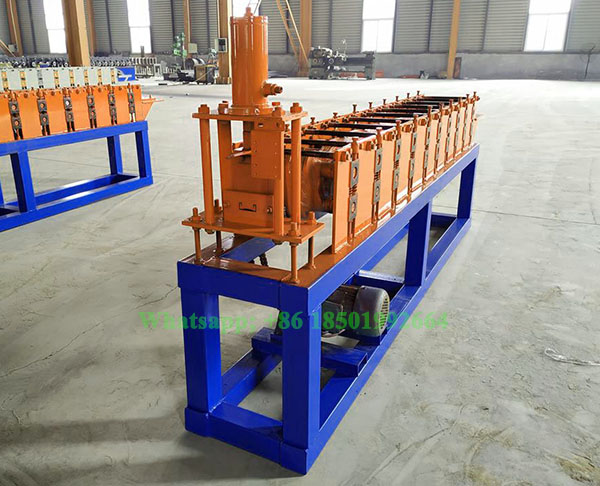

2.Roll forming machine
1) Machine structure:cast iron roller fixer
2) Main power:5KW siemens motor
3) Forming stations:12 stations
4) Way of drive: By Chain
5) Diameter of shaft : 50mm
6) Max rolling speed: 0-12m/min
7) Thickness: 0.3-0.8mm galvanized steel or prepainted sheet,G550Mpa
8) Material of roller: CR12 with quenched treatment
9) Material of blade mould: Cr12, quenched 58-62
3. Control system
1) Control system: PLC
2) PLC brand:Delta
3) Screen:Touch screen
4) Screen brand:Touch screen
4. Hydraulic system:
1) Hydraulic pressure :16Mpa
2) Hydraulic power:4kw
3) Cooling system:fan cooling
