Alibaba Steel Square Pipe Making Machine/Steel Pipe Welding Line could be used to make downspout pipes in a higher speed and good quality by 16 years in this area. For this machine, we take guide column frame style to make machine for making sure machine working speed and steady. And for the transmission, we will use gearbox with chain. The machine will be totally same as the following pictures shows.

2, Machine components of Square Water Downspout Cold Roll Forming Machine:

Passive uncoiler

Guiding unit

Roll forming machine

Cutting unit

Hydraulic station

PLC control cabinet

3, Main forming part Specification of Square Water Downspout Cold Roll Forming Machine:

Power:5.5kw

No. of station rollers: 20 rollers

Transmission: chain

Forming speed: 0-15m/min

Supported material:0.4-0.8mm color steel sheet or GL, GI and others

Single sided coating:0.05mm

Hydraulic station power:5.5kw

Error: ±2mm

Main machine size:8000 mm×1250 mm×1500 mm

Control style:the high voltage control

Material of shearing:Cr12

Big Frame: 350 H Steel

Cutting way: Adopt Fly saw cutting way

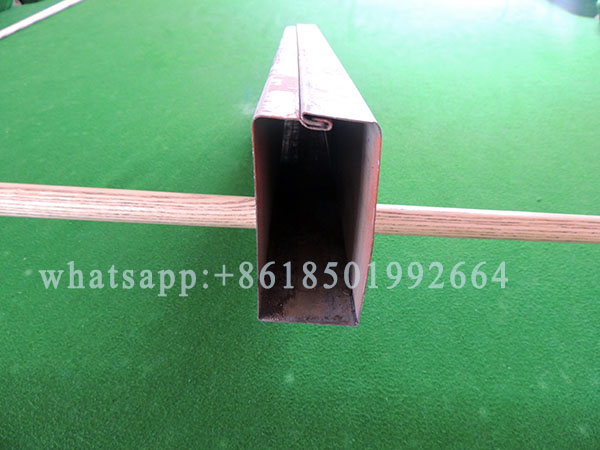

4, Product of Square Water Downspout Cold Roll Forming Machine:

Square Water Downspout Cold Roll Forming Machine.JPG

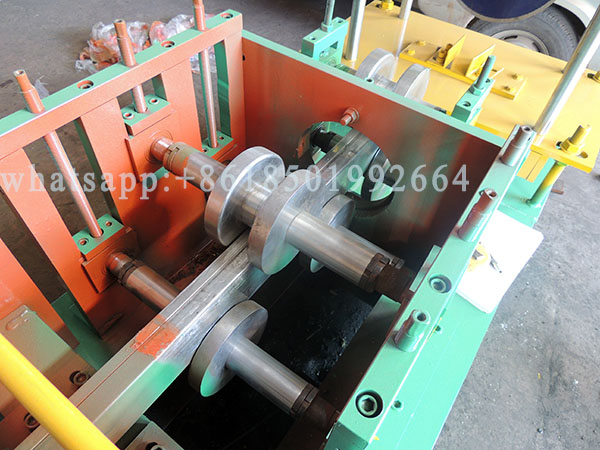

5, Roller of Square Water Downspout Cold Roll Forming Machine:

Square Water Downspout Cold Roll Forming Machine.JPG

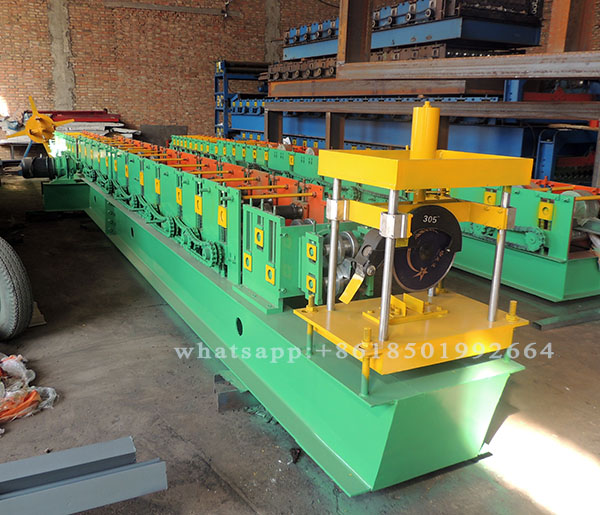

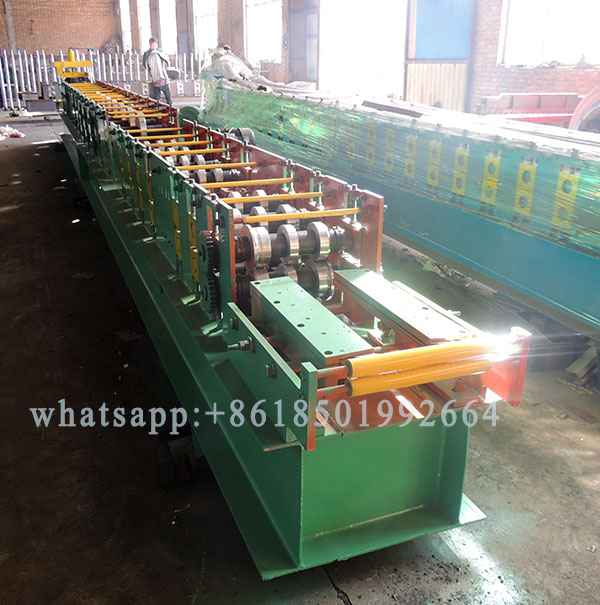

6, Square Water Downspout Cold Roll Forming Machine:

Square Water Downspout Cold Roll Forming Machine.JPG
