Shutter Door Roll Forming Machine
  • Shutter Door Roll Forming Machine

Shutter Door Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Shutter Door Roll Forming Machine

1, Main Component

1), Main Forming Machine:1 Set

2), PLC Control Box: 1 Set

3), Cutting Device: 1 Set

4), Pump Station: 1 Set

5), Decoiler: 1 Set

2, Main Forming Machine

1), Roll Material: Color Steel Sheet/Material Grade:Q235

2), Thickness: 0.3-0.8mm

3), Shaft Station: 12 Stations

4), Rolling speed: 8-12m/min

5), Material of Frame: 80×80 square pipe welding

6), Thickness of Middle plate: 16mm

7), Diameter of Shaft: 50mm(Solid Shaft)

8), Shaft materials; 45#Sheet plated hard

9), Material of Roller: (high grade)45#Steel tempering treatment, hard chrome coating

10), Power of main motor: 4KW

11), Power of pump station: 3KW

12), Cutter materials: Gcr12 steel with quenched treated 60°-62°C

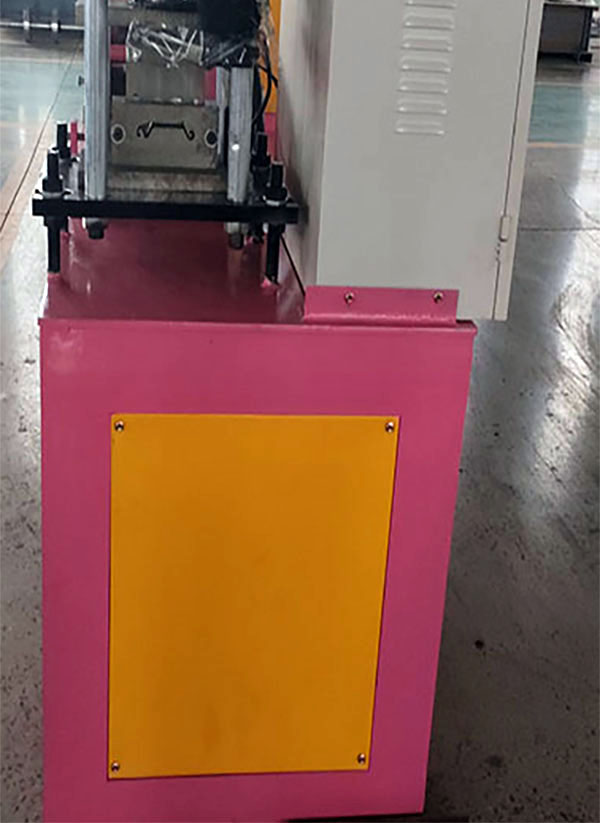

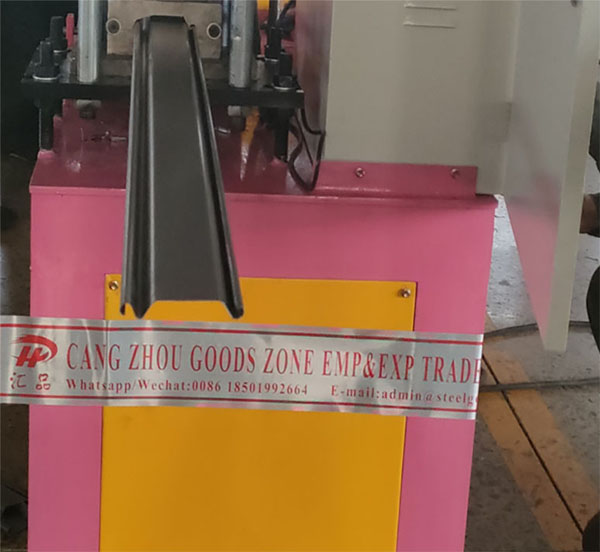

3, Cutter of Sheet Door Frame Profile Roll Forming Machine

Roll-up Shutter Door Roll Forming Machine.jpgRoll-up Shutter Machine.jpg

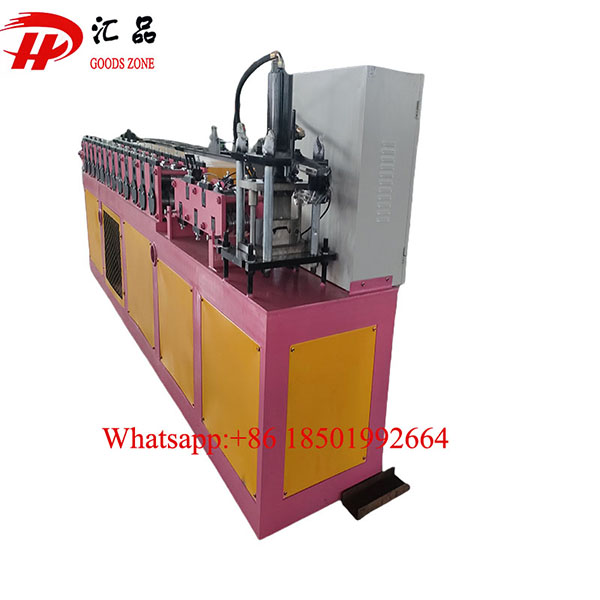

4, Main Sheet Door Frame Profile Roll Forming Machine

Philippines Roll-up Shutter Door Roll Machine_副本.jpg
