Standing Seam Boltless Roofing Systems Machine Factory
  • Standing Seam Boltless Roofing Systems Machine Factory

Standing Seam Boltless Roofing Systems Machine Factory

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

Standing Seam Boltless Roofing Systems Machine Factory

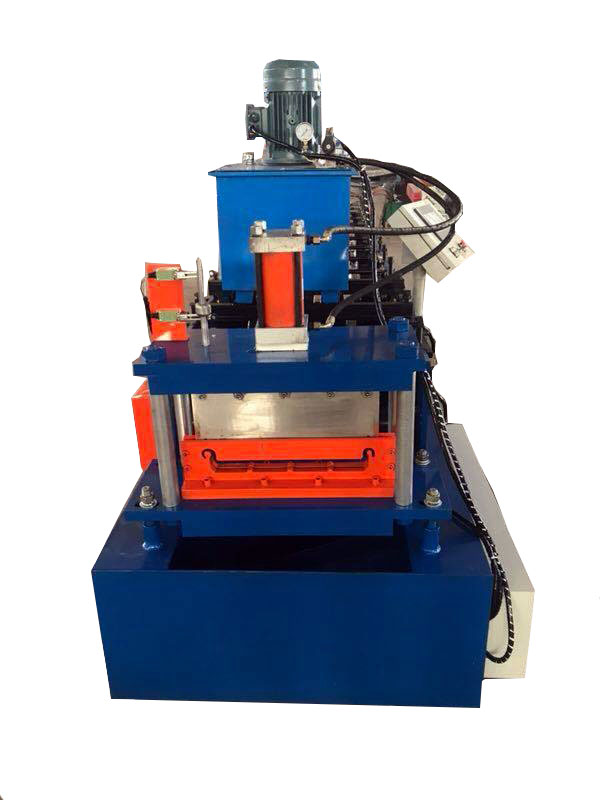

Standing Seam Boltless Roofing Systems Machine Factory.jpg

Feature of Standing Seam Boltless Roofing Systems Machine Factory:

1),PLC computer control

2), no noise,no shake

3), hydraulic system,long operating

4), easy operation

5), maintenance-free

Main technical dates of Standing Seam Boltless Roofing Systems Machine Factory :

1), Coil Feeding Equipment: Consists of one uncoiler with capacity of 5 tons and its base. The steel sheet is manually fed to the guiding equipment under the function of friction and traction.

2), Infeed Guide: Adopting guiding bar and sliding block (sheet lubricator) to control the width and position of the steel sheet. The coil sheet is guided in the correct position and passed to the roll forming equipment.

3), Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.ition and passed to the roll forming equipment.

4), Roll Forming Stationt: The main frame of machine is welded separately and the outside wall is connected by screw after being roto blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool. The tooling is PLC precision machined and supported with pre-lubricated rolling contact bearings.

5), Post-cut Equipment: Stationary hydraulic post shear/guillotine. The length and quantity of pieces can be set by the buyer through the control console, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.

6), Pressing Die System: To make pressing die for the steel sheet after roll formed, the shape of corrugated sheet will be pressed into steps. The distance of step length can be adjusted.e power of hydraulic station which guarantees the precision of cutting.

7), Hydraulic Station: Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.length can be adjusted.e power of hydraulic station which guarantees the precision of cutting.
