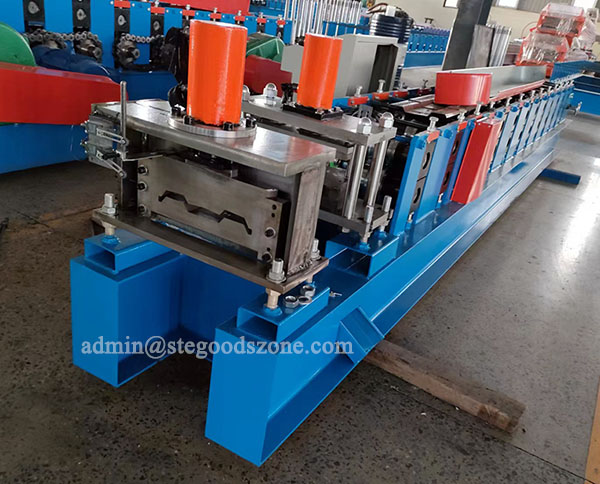

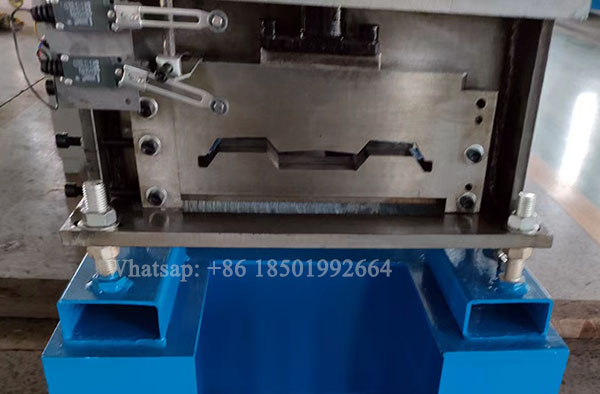

Main Details Of Clamp Steel Sheet Metal Roll Forming Machine:
1), Raw material : Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width : Customized
3), Effective width :Customized
4), Thickness :0.3-0.7mm
5), Dimension of machine : About 6m*1.4m*1.3m
6), Shaft station : 12 Stations
7), Rolling speed : 0-12m/min
8), Transmission : By chain
9), Size of Chain : 1.0 inch
10), Material of Frame : 350 H steel welding
11), Thickness of middle plate : 16mm
12), Shaft materials : 45# Steel plated hard
13), Material of Roller : 45# Steel plated hard
14), Power of main motor : 5.5KW
15), Cutter materials : GCr12 steel with quenched treated 60-62°C
