Self Lock Roof Sheet Forming Machine home > Products> Self Lock Roof Sheet Forming Machine
470 Model Standing Seam Boltless Roofing Systems Machine
  • 470 Model Standing Seam Boltless Roofing Systems Machine

470 Model Standing Seam Boltless Roofing Systems Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

470 Model Standing Seam Boltless Roofing Systems Machine

1, Working Flow of Roll Forming Machine

    De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

2, Main 470 Model Standing Seam Boltless Roofing Systems Machine description:

    1). Processing Material: PPGI,GI

    2). Processing Thickness(mm): 0.3-0.7mm

    3). Material of Rollers: 45# steel, with hard chrome coated

    4). Diameter of Shaft: 75mm

    5). Production Speed: 0-20m/min

    6). Roller Driven: Decelerating Motor Chain Transmission

    7). Cutting Model: Hydraulic Profile Cutting

    8). Length Measurement: Encoder

    9). Control Style: PLC

   10). Total Power: 8kw

   11). Voltage: 380V 50HZ or at buyer's request

   12). Testing Material: Q195

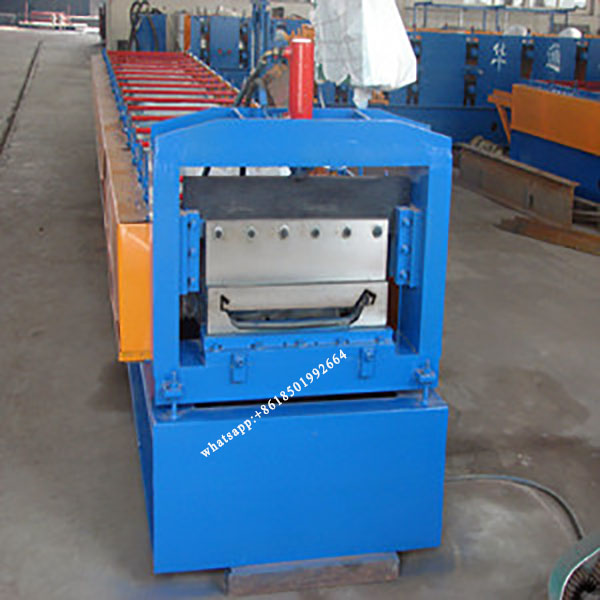

3, 470 Model Standing Seam Boltless Roofing Systems Machine:

470 Model Standing Seam Boltless Roofing Systems Machine.jpg
