1, Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine Details:
Working materials thickness: 0.5-1.2mm
Roller Stations: 24 Steps
Shaft Diameter: 80mm
Productivity: 15m/min
Roller materials: 45#Steel with hard chrome treatment
Shater materials: 45#Steel
Machine Length: 11meters
Control Device: PLC control (Taiwan delta)
Drive way: By chain
Chain Size:1.0 inch-2inches
Cutting device:Hydraulic cutting device
Un-coiler: one set 10 tons manual control decoiler
2, Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine Working flow:
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
3, Main Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine shows in our factory:

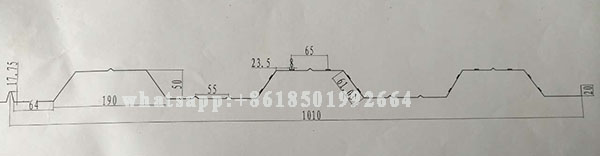

1), Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine's product Profile:

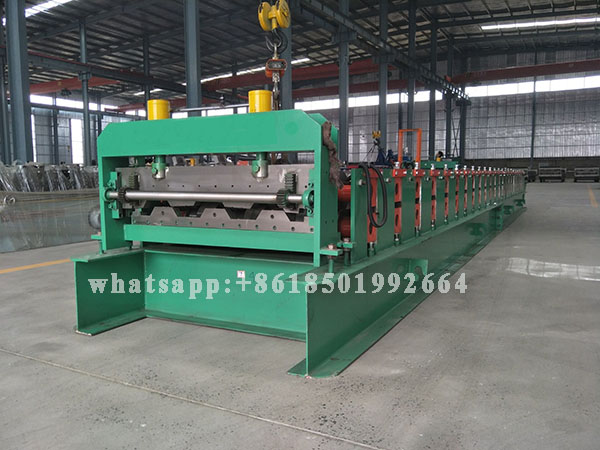

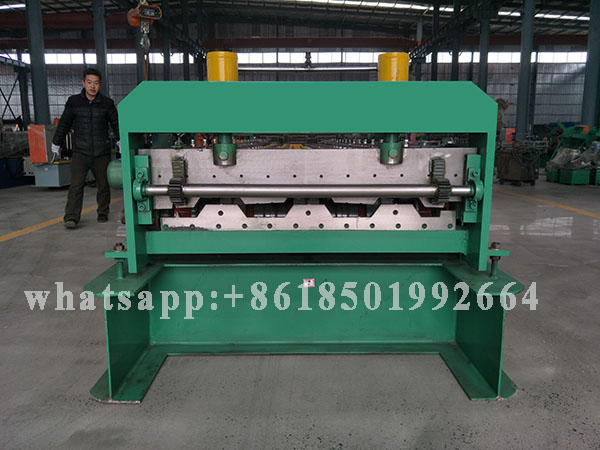

2）Main Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine Forming Body:
3）Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine Cutter:

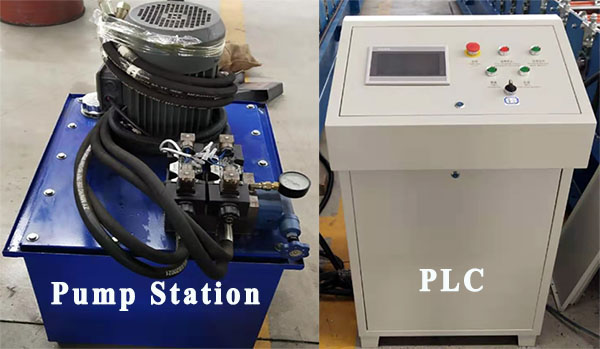

4) PLC Control Device and Pump Station Of Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine:

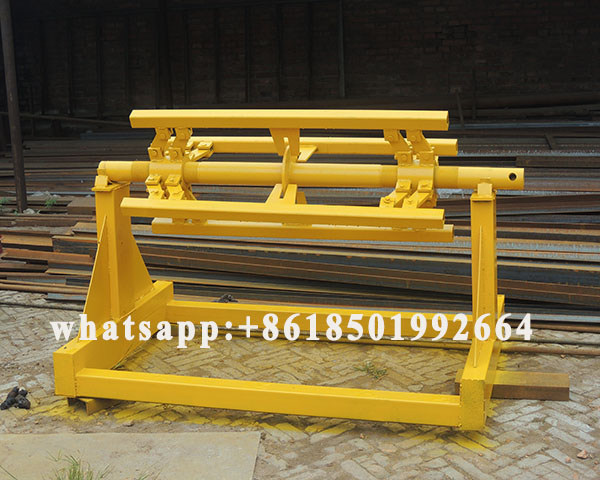

5) 10 Tons Uncoiler of Philippines 1010 Model Webdeck Steel Decking Roofing Sheet Machine:
