1, How to use Myanmar Rolling Shutters Door Making Machine?
1). Put all necessary parts on the right location.
2). Connect electric wires,use 6-8 mm² support line and keep grounding.
3). Fill hydraulic oil in the pump.not too full,three quarters are ok.
4). Feed raw materil into the machine slowly,make it run smoothly then automatic.
5). Pay attention to final sheet collection,do not scretch it or hurts people.
2, Main technical dates:

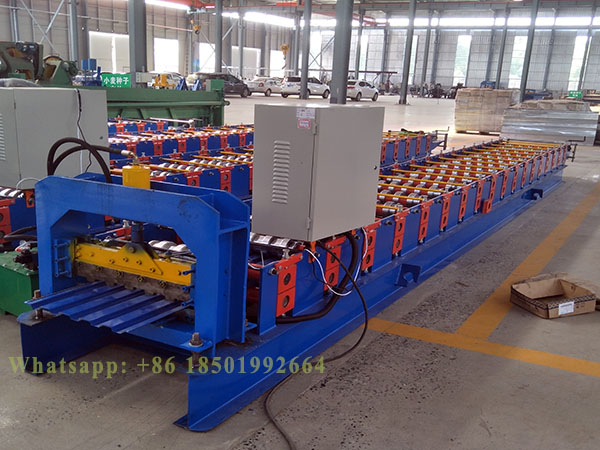

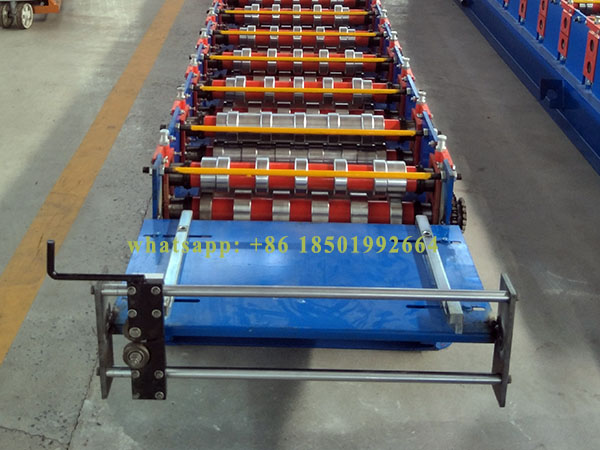

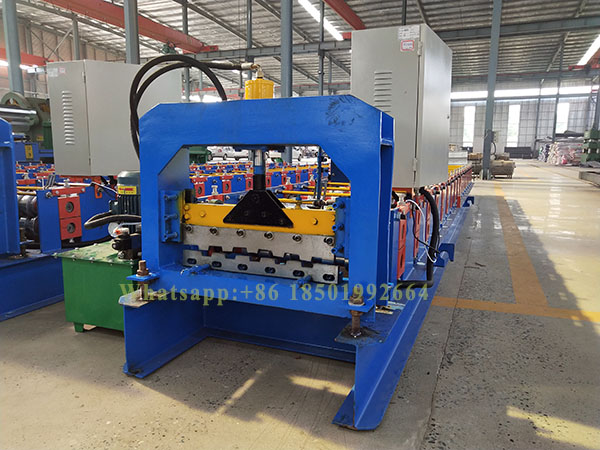

1), Main Roll Forming Machine
Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Forming roller station: 12 Stations
Straight roller station: 3 Stations ( Up layer 2 rollers , down layer 3 rollers )
Diameter of shaft: 40mm
Shaft material: High grade 45# steel
Roller material: High grade 45# steel , hard treatment and polishing ( plated chrome on surface )
Frame thickenss: 14 mm
Working speed: 8-15 m/min
Size (L*W*H): About 4500*850*1300mm
Weight: About 2.0 tons
