De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

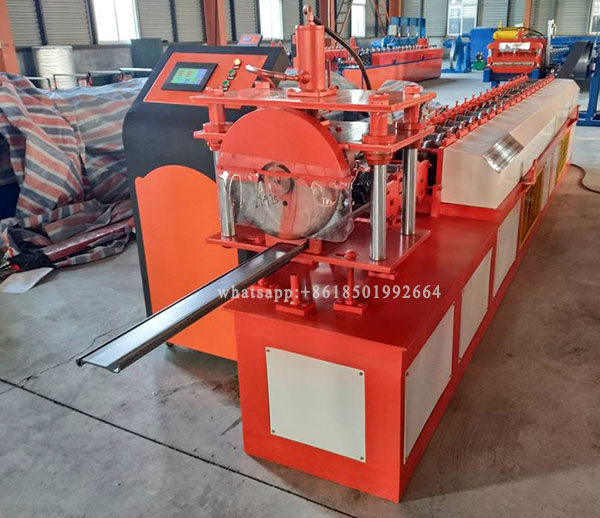

1).This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2). The machine is stable,no noise,no shake.
3). Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free.
4). Cutting machine is characterized by stable driving,easy operation.
5.Hydraulic system use the hydraulic pump,long operating life,no noise.
1). Raw material: PPGI/GI
2). Materials thickness: as customer's request
3). Yield strength: 240Mpa to 350Mpa
4). Operation: Manual
5). Weight apacity: 2.8tons
1). Roller station: designed by customer's drawings
2). Diameter of shaft: 65mm
3). Material of shaft: 45#steel with 0.05mm chrome
4). Material of rollers: 45#steel with 0.05mm chrome
5). Chain size: 1inches
6). Middle plate thickness:16mm
7). Frame: welding steel
8). Cutter: Blade Material GCR12 steel
9). Operation: Automatic hydraulic type
10). Power Voltage: 380V/50HZ,3 phase
11). Main motor: 5.5 KW
12). Pump motor: 3KW
13). Electric box control system: PLC
14). Frequency converter: Counter
15). Language: English
