Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil
  • Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil

Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

1, Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil Main Components:

    3T Decoiler, Roll forming machine, PLC cabinet, Hydraulic station , Output table(2)

2, Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil Flow Chart:

    Passive decoiler----Feeding----Forming----Hydraulic Cutting----Runout table

3, Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil Main Technical dates:

   1) Main power: 4KW

   2) Roller stations: 10-12stations

   3) Drive way: By chain,1.0 inch single chain drive

   4) Diameter of shaft: 50mm

   5) Cutting system: hydraulic cutting

   6) Length tolerance: ±1.5mm

   7) Working speed: 0-20 m/min

   8) Thickness: 0.3-0.8 mm

   10) Material of shaft: 45# steel

   11) Hydraulic pressure: 12 Mpa

   12) cutting saw power: 3kw

   14) Control system: PLC Control

   15) Size of machine: approx 4m*1.0m*1.0m

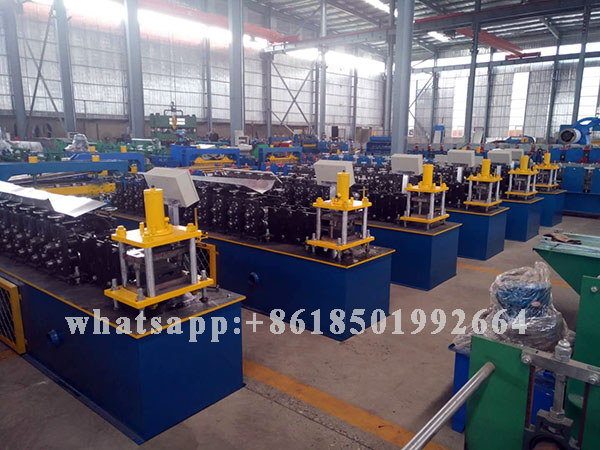

4，Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil in our factory:

Galvanized Steel Rolling Shutter Door Slats Roller Machine For Brazil.jpg
