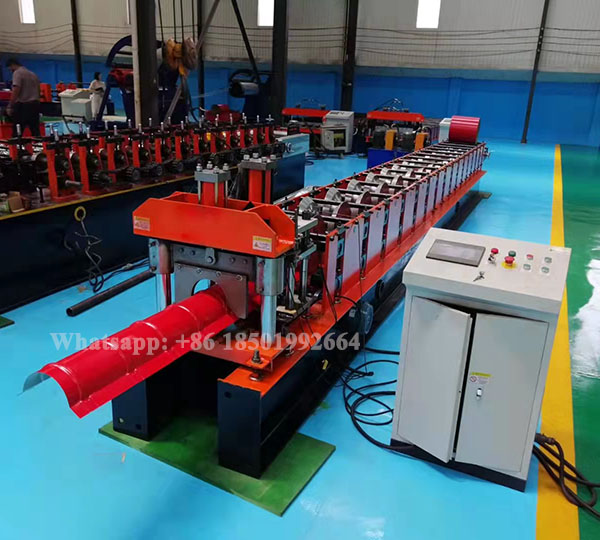

Main Technical Dates:
1), Raw material : Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width :450mm
3), Effective width :312mm
4), Thickness :0.3-0.7mm
5), Machine Weight : About 3.0Tons
6), Shaft station : 12 Stations
7), Rolling speed : 0-8m/min
8), Transmission : By chain
9), Size of Chain : 1.0 inch
10), Material of Frame : 350 H Steel welding
11), Thickness of middle plate : 16mm
12), Diameter of Shaft :70 mm
13), Shaft materials : 45# Steel plated hard
14), Material of Roller : 45# Steel plated hard
15), Power of main motor : 4KW
16), Cutter materials: GCr12 steel with quenched treated 60-62°C
17), Power of pump station :4KW
18), Control system : PLC Control Box
19), Cutting way : Automatic and Manual two control way
20), Cutting accuracy : ±2mm
