High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine

  It's products available in wide variety of sizes and colours and suitable for residential, commercial and industrial projects.

1), Processing Material : PPGI,GI

2), Processing Thickness(mm): 0.95 mm

3), Material of Rollers: 45# steel, with hard chrome coated

4), Roller station: 18-19 stations

5), Diameter of Shaft: 70mm

6), Production Speed: 0-14m/min

7), Roller Driven: Decelerating Motor+Chain Transmission

8), Cutting Model: Hydraulic Profile Cutting

9), Length Measurement: Encoder

10), Control Style: PLC

11), Operation Model: Button + Touch Screen

12), Voltage: 380V 50HZ or at buyer's request

13), Testing Material: Q195

14), Manual Unicoiler of High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine:

  Usage : It is used to support the steel coil and uncoil it.

  The Steel coil is expansion by hand

  Loading capacity : 3T

  Inner diameter : 450-508mm

15), Encoder of High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine: One counter gauges length ,pulses ,and decides length.

16), Computer Control Cabinet of High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine: It adopts Delta/Siemens PLC to control .The target piece's length is adjustable and digit of it can be adjusted ,Computed mode has two modes :automatic and manual one .The system is easy to operate and use .

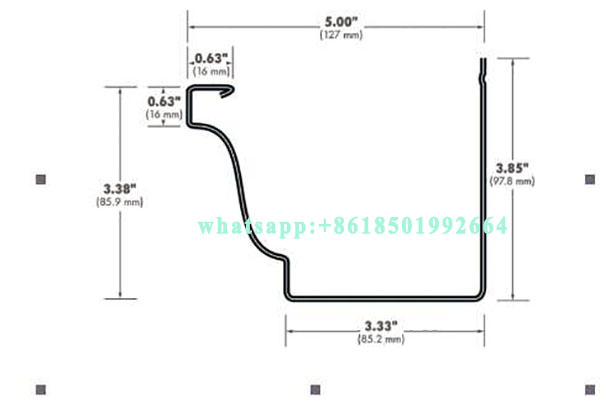

17), High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine Profile:

High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine.jpg

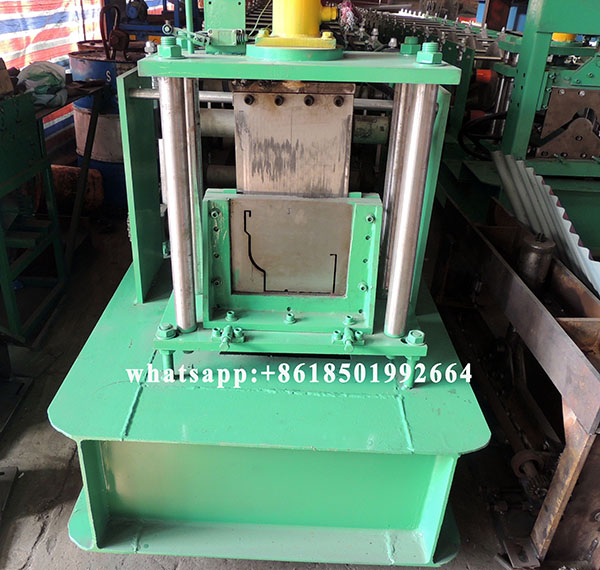

18), High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine Cutter:

High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine.JPG

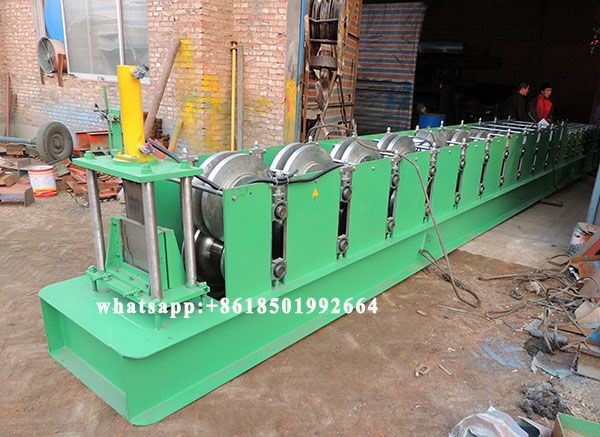

19) High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine:

High Efficiency Portable Rain Gutter Equipment For Downspout Roll Forming Machine.JPG
