Galvanized metal rain gutter profile cold rolling forming machine
  • Galvanized metal rain gutter profile cold rolling forming machine

Galvanized metal rain gutter profile cold rolling forming machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

Galvanized metal rain gutter profile cold rolling forming machine


Main Galvanized Metal Rain Gutter profile Cold Rolling Machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.


1,  Features of this Galvanized Metal Rain Gutter Profile Cold Roll Forming Machine :


1) lower cost


2) high efficiency


3) reliable working


4) low energy consumption


2,Components of  Rain Gutter Profile Cold Roll Forming Machine


1)steel strip supporting frame


2) Feeding platform


3) Automatic shearing system


4) Hydraulic system Steel strip unfolding system


5) Computer control system (imported computer)


6) High-precision automatic counter


7) Receiving table


8) Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel shee


 3, Optional components of the Gutter Profiling Machine:


1)Manual uncoiler frame in different tons


2) Hydraulic automatic uncoiler


4, Working space and workman for the Gutter Profiling Roll Forming Machine

1) Ground-level land


2) ≥5T overhead travelling crane


3) Space for storing the material


4) Space for laying the machine


5) Road for vehicle moving


6) Workman: 2, operator and porter

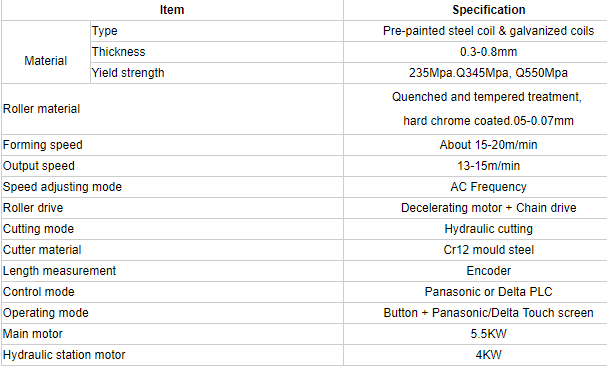

5, Main Technical dates:

Galvanized metal rain gutter profile cold rolling forming machine.png
