Ridge Cap / Gutter Roofing Tile Forming Machine home > Products> Ridge Cap / Gutter Roofing Tile Forming Machine
Commercial Roof Panel Machine 312 Model Ridge Capping
  • Commercial Roof Panel Machine 312 Model Ridge Capping

Commercial Roof Panel Machine 312 Model Ridge Capping

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

1, Commercial Roof Panel Machine 312 Model Ridge Capping Description

   1), Raw material : Based on agreement drawing

   2), Working Speed: 8-15m/min  (not including cutting time)

   3), Roller Stations:13 stations

   4), Material of Roller: 45# steel quenching process and chrome coated

   5), Material of Shaft: 45 steel forged,

   6), Material of Shaft: 65 mm

   7), Main Motor Power: 4KW

   8), Electrical Hydraulic Station: 4KW

   9), Hydraulic Station Pressure:12.0 Mpa

  10), Electrical Control System: PLC

  11), Material of Cutter: Cr12 Mov HRC 58-62

  13), Driving Modesingle chain:1 inch

  14), Material Thickness: 0.3-0.8mm

  15), Cutting accuracy: ±2mm

  16), Power Supply: 380V, 60HZ, 3 PHASES

2. Component of Commercial Roof Panel Machine 312 Model Ridge Capping :

   1), 3 ton manual decoiler: 1Set

   2), roll forming machine:1 Set

   3), Hydraulic station: 1 Set

   4), Electric cabinet: 1Set

   5),Document: 2Operation manual

   6), Spare parts: 1 set

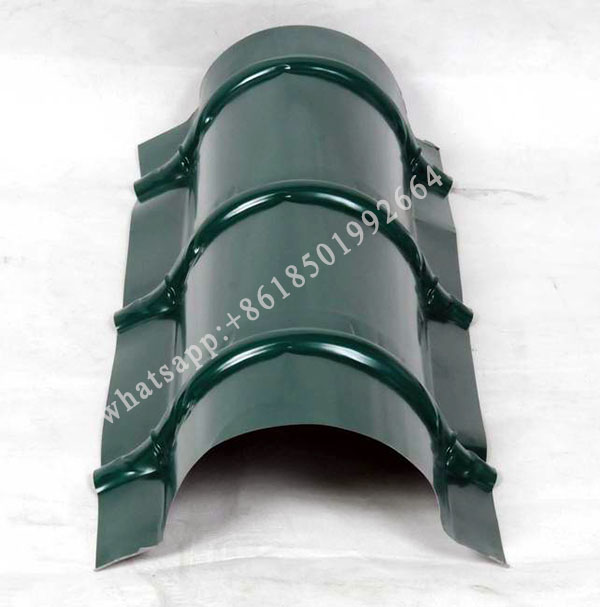

3, Commercial Roof Panel Machine 312 Model Ridge Capping's product:

Commercial Roof Panel Machine 312 Model Ridge Capping.jpg

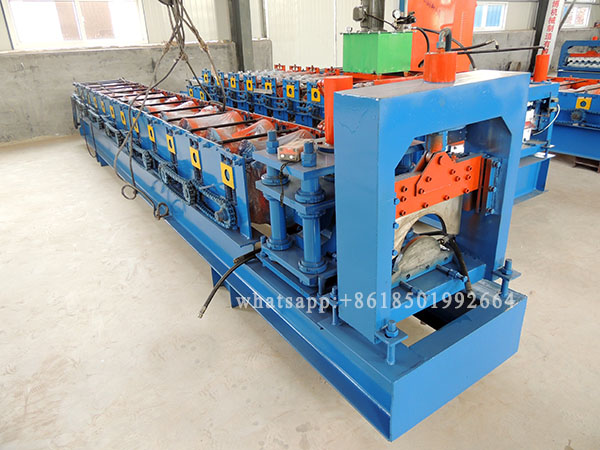

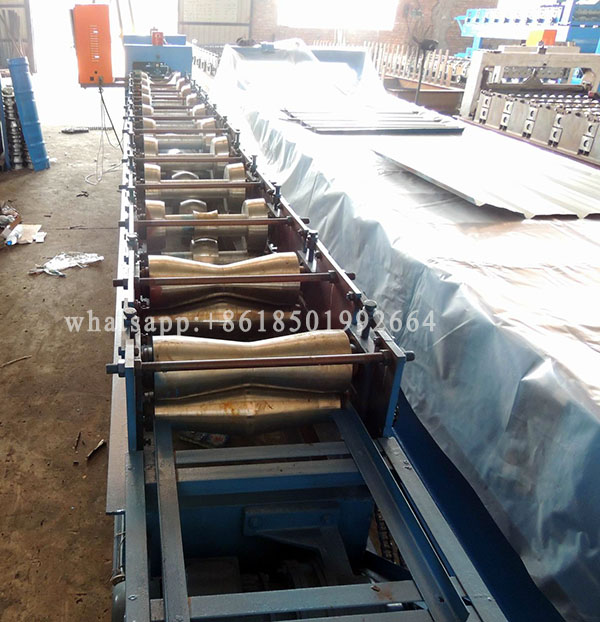

4, Commercial Roof Panel Machine 312 Model Ridge Capping:

Commercial Roof Panel Machine 312 Model Ridge Capping.JPG

Commercial Roof Panel Machine 312 Model Ridge Capping.JPG

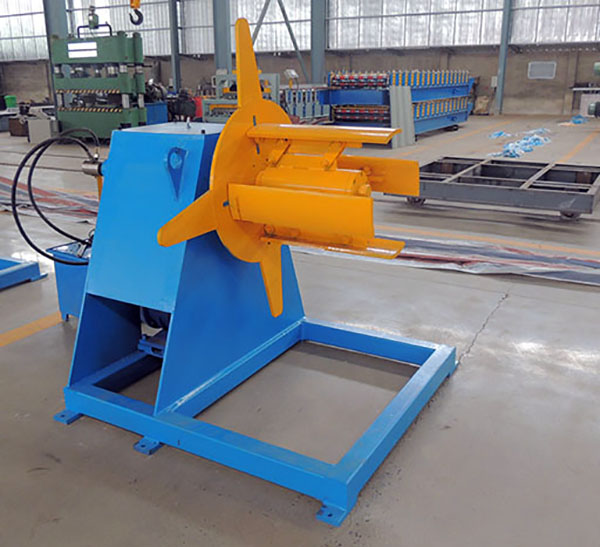

5, 3 Tons decoiler of Commercial Roof Panel Machine 312 Model Ridge Capping:

Commercial Roof Panel Machine 312 Model Ridge Capping.jpg
