Ridge Cap / Gutter Roofing Tile Forming Machine home > Products> Ridge Cap / Gutter Roofing Tile Forming Machine
400 Type Valley Ridge Cap Profile Forming Machine
  • 400 Type Valley Ridge Cap Profile Forming Machine

400 Type Valley Ridge Cap Profile Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

400 Type Valley Ridge Cap Profile Forming Machine

1, Advantage of 400 Type Valley Ridge Cap Profile Forming Machine:

    Save space, more convenient

    Easy operate, low maintenance cost

    Stable and durable

    Low cost, high strength, short building period and re-cycle use

    Save materials, no waste

2, 400 Type Valley Ridge Cap Profile Forming Machine Description:

   Working materials thickness: 0.3-0.8mm

   Materials Width: Based on detailed drawing

   Materials Coil: Color Steel Coil / Galvanized Steel Coil

   Roller Stations: 12 Steps

   Shaft Diameter: 70mm

   Productivity: 15m/min

   Roller materials: 45#Steel with hard chrome treatment

   Machine Length: 7meters

   Control Device: PLC control

   Drive way: By chain

   Chain Size: 1.0 inch

  Cutting device: Hydraulic cutting device

  Un-coiler: one set 3 tons manual control decoiler

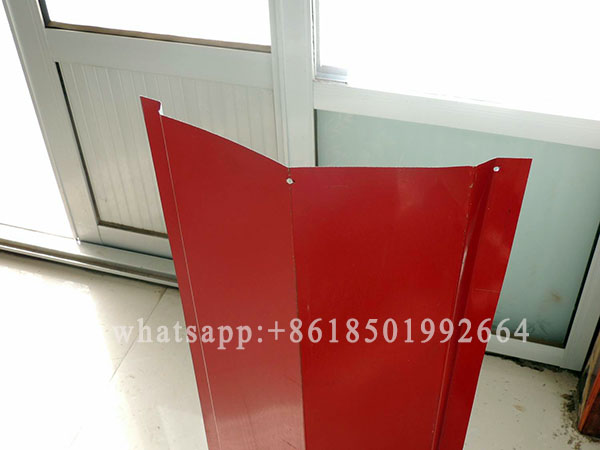

3, Profile of 400 Type Valley Ridge Cap Profile Forming Machine:

400 Type Valley Ridge Cap Profile Forming Machine.JPG

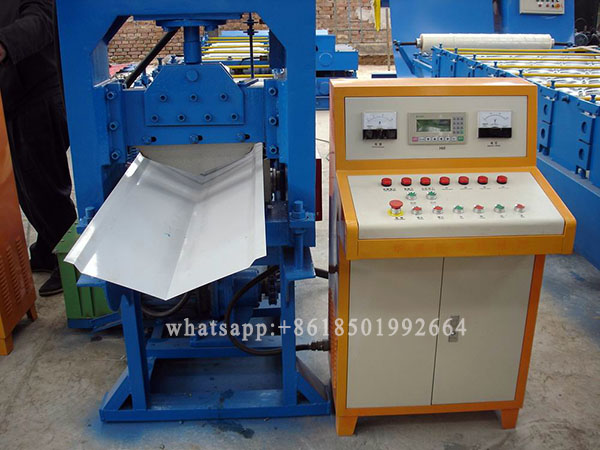

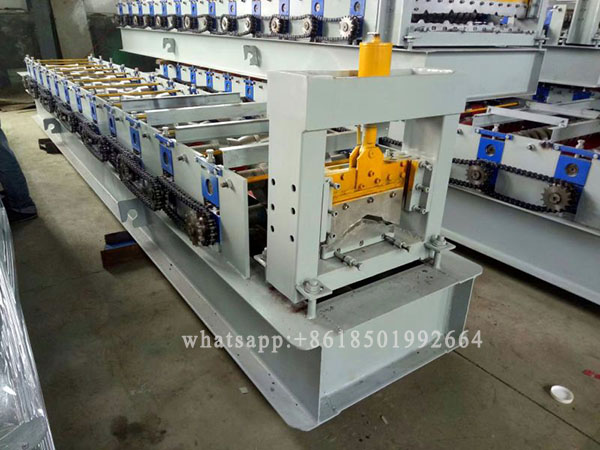

4, Main 400 Type Valley Ridge Cap Profile Forming Machine shows in our factory:

400 Type Valley Ridge Cap Profile Forming Machine.JPG

400 Type Valley Ridge Cap Profile Forming Machine.jpg
