360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine
  • 360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine

360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine Main Description:

1), Working materials: PPGI/GI

2), Working materials thickness: 0.3-0.6mm

3), Roller Stations: 10-12 Stations

4), Shaft Diameter: 65mm

5), Productivity: 0-15m/min

6), Roller materials: 45#Steel

7), Shater materials: 45#Steel

8), Machine Size: About 4m*1.0m*1.3m

9), Control Device: PLC control (Taiwan delta) or customize

10), Drive way: By chain

11), Chain Size:1.0 inch

12), Cutting device: Hydraulic cutting device

13), Machine Main Body: 300 H Steel

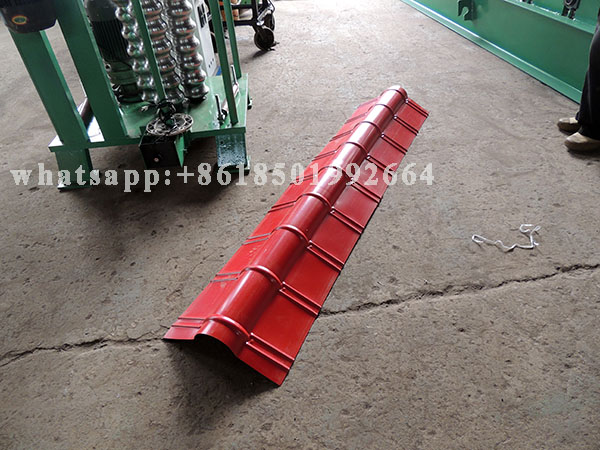

14), 360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine's Product Show:

360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine.jpg

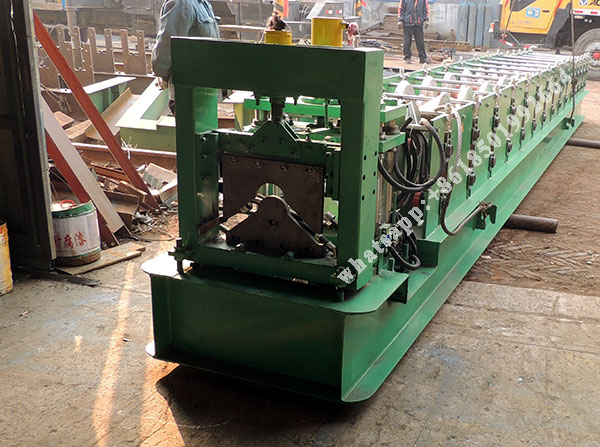

15), 360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine Show:

360 Model Barrel Ridge Capping Metal Roofing Profile Forming Machine.jpg
