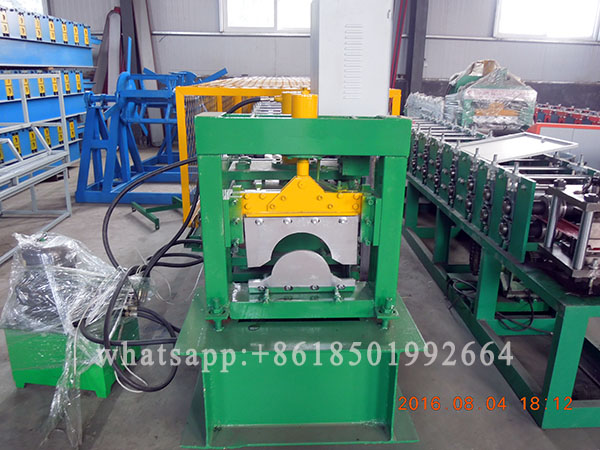

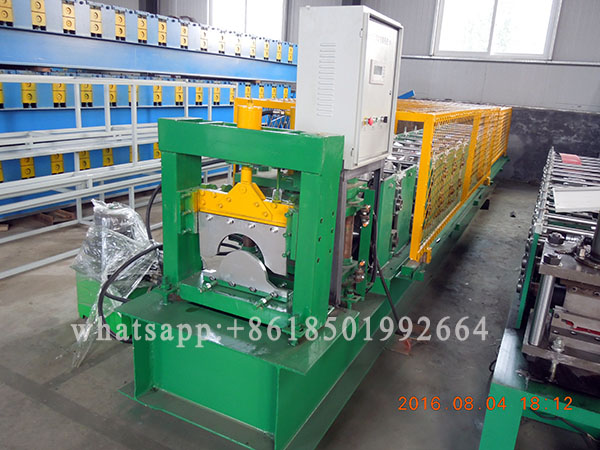

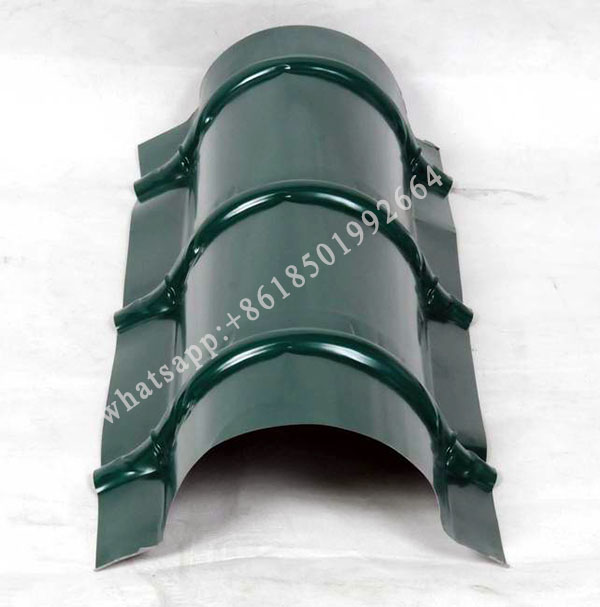

The 312 Type Galvanised Cold Rolled Ridge Cover Zinc Steel Sheets are used for covering two connecting roof sheets, it avoid the water run into the roofing.
1), Machine Size: 4000mm*900mm*1300mm ( L*W*H)
2), Feeding Width: based on confirmed drawing
3), Forming Size: 312 Model
4), Materlas: Color Steel
5) Shaft diameter: 65mm
6), Wall Plate: 16mm
7), Main Power: 4KW
8), Machine main body: 300 H Steel

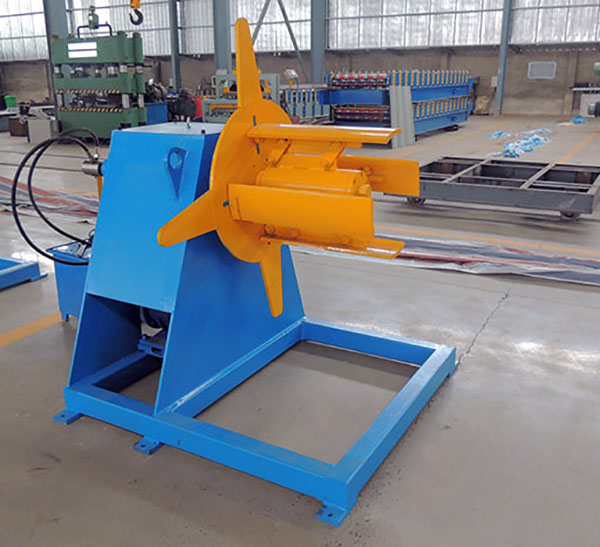

9), Uncoiler: one set manual control uncoiler
10), Control device: PLC automatic control
11), Cutting device: Hydraulic Cutting
12), Feeding materials: Color Steel coil/ Galvanized Steel coil
13), Materials thickness: 0.3-0.7mm
14), Drive way: By chain
15), Chain size: 1inch
16), Warranty: one year
