Uzbekistan 1080 Model Roof And Wall Panel Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

Description

1，Advantage Of Uzbekistan 1080 Model Roof And Wall Panel Forming Machine:

Save space, more convenient

Easy operate, low maintenance cost

Stable and durable

Rollers manufactured from high quality 45# Steel, CNC lathers, heat treatment

With black treatment or hard-chrome coating for options

With feeding material guide, body frame made from 300 H steel or 350 H steel welcidng

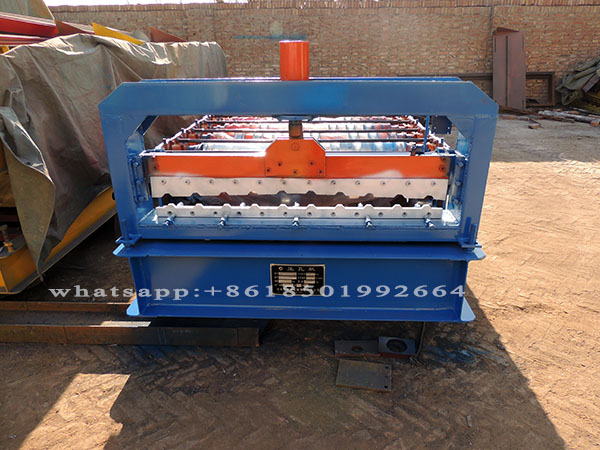

Uzbekistan 1080 Model Roof And Wall Panel Forming Machine.JPG

Made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding

Hydraulic motor: 4KW

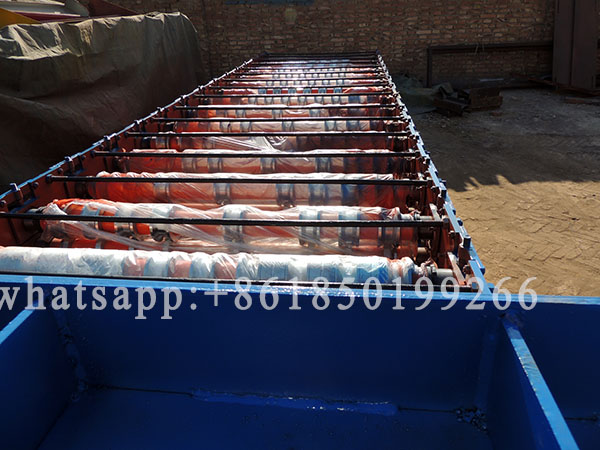

Uzbekistan 1080 Model Roof And Wall Panel Forming Machine.JPG

Manual decoiler: One set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1250mm Coil range:470-550mm

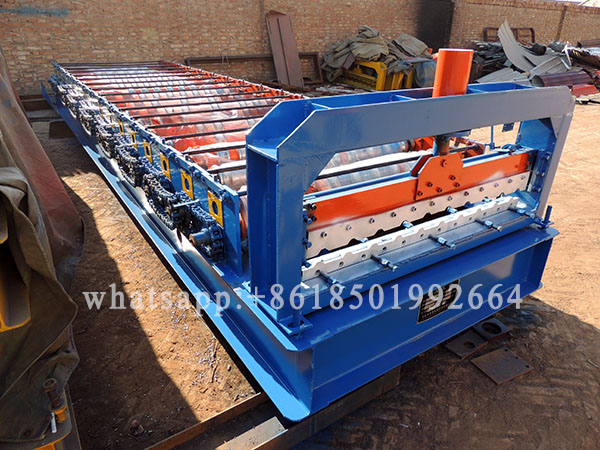

Uzbekistan 1080 Model Roof And Wall Panel Forming Machine.JPG

Suitable for materials thickness: 0.3-0.8mm

Feeding Materials width: 1250mm

Effective width: 1080mm

Shaft materials: 45# Steel

Shaft diameter: 75mm

Motor driving, Gear chain transmission, 18 steps

Main motor is 4KW

Forming speed: 8-15m/min

Uzbekistan 1080 Model Roof And Wall Panel Forming Machine.JPG
