T30 Residential Metal Roofing Plate Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

Machine name: T30 Residential Metal Roofing Plate Roll Forming Machine

Application: T30 Residential Metal Roofing Plate has been used extensively by the construction industry throughout the World for nearly two centuries. Because of its excellent corrosion resistances, it has become the preferred material for a wide range of construction uses, particularly roofing and wall.

Main description:

1, Advantage: Low cost, high strength, short building period and re-cycle use

                       Save materials, no waste

                       Able to deal with stainless materials

2, Rollers

    Rollers manufactured from high quality 45# Steel, CNC lathers, heat treatment

    With black treatment or hard-chrome coating for options

    With feeding material guide, body frame made from 300 H steel or 350 H steel welcidng

3, Cutter:

    Made by high quality mold steel Cr12 with heat treatment

    Cutter frame made from high quality 20mm steel plate by welding

    Hydraulic motor: 4KW

4, Decoiler:

    Manual decoiler: One set

    Un-powered, manually control steel coil inner bore shrinkage and stop

    Max feeding width: 1250mm   Coil range:470-550mm

5, Technical dates:

   Suitable for materials thickness: 0.3-0.8mm

   Shaft materials: 45# Steel

   Shaft diameter: 75mm

   Motor driving, Gear chain transmission, 13-15 steps

   Main motor is 5.5KW

   Forming speed: 8-15m/min

6, Machine product:

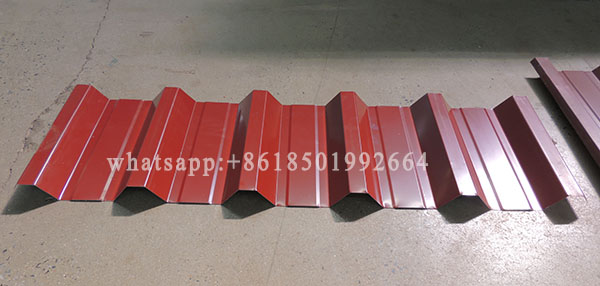

T30 Residential Metal Roofing Plate Roll Forming Machine.JPG

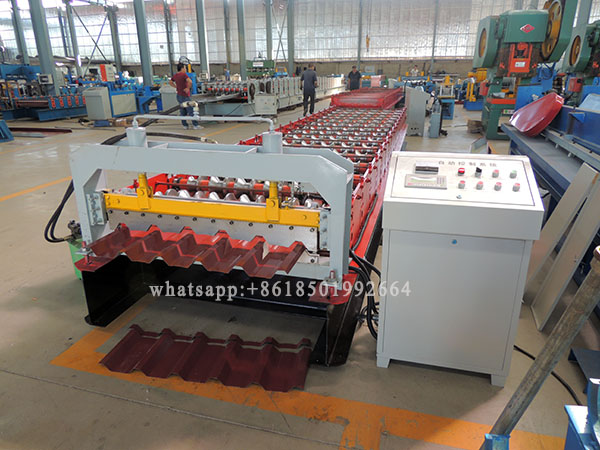

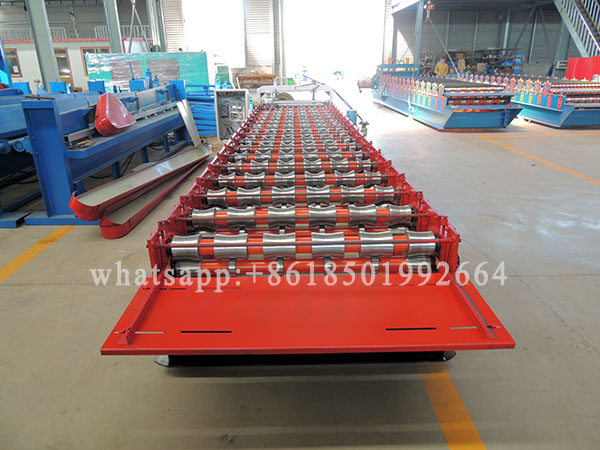

7, T30 Residential Metal Roofing Plate Roll Forming Machine:

T30 Residential Metal Roofing Plate Roll Forming Machine.JPG

T30 Residential Metal Roofing Plate Roll Forming Machine.JPG
