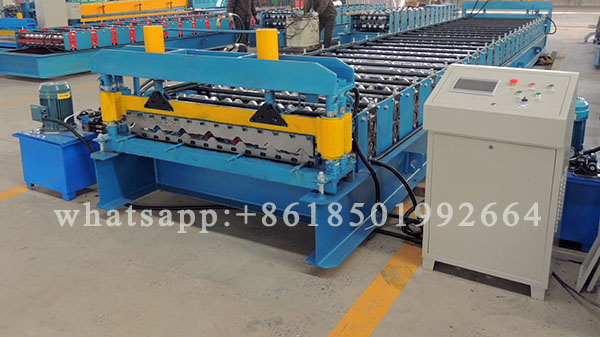

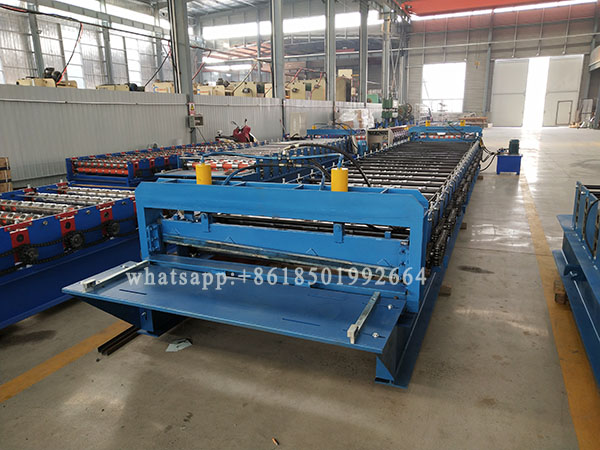

The panel produced by Singapore Popular Style Klip-lok Roof Panel Roll Forming Machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment.
1), Steel Thickness: 0.3-0.8mm
2), Forming Speed: 8-20m/min
3), Roller stands: 16 stand -24 Stands
4), Roller Material: high-grade 45# steel
5), Shaft diameter : 75mm
6), Main Motor Power: 5.5kw
7), Hydraulic cutting Power: 4kw
8), Power Supply: 380V, 50HZ,3 phase
9), Tolerance: 1.0mm
10), Material of cutting: Cr12
11), Control system: PLC with touch screen
1). High wave, high strongness, high atuomation
2). Passed by CE and ISO9001
3). Adopt PLC system and easy to handle
Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack.
Save space, more convenient
Easy operate, low maintenance cost
stable and durable
Low cost, high strength, short building period and re-cycle use
Save materials, no waste
Able to deal with stainless materials
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
