1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width :1200mm
3), Effective width : 1000mm
4), Thickness : 0.3-0.7mm
5), Shaft station : 14 Stations
6), Rolling speed : 0-19m/min
7), Transmission:By chain
8), Size of Chain :1.0 inch
9), Material of Roller : 45# Steel plated hard
10), Cutter materials: GCr12 steel with quenched treated 60-62°C
11), Power of pump station:4KW
12),Machine color: Do based on you need.

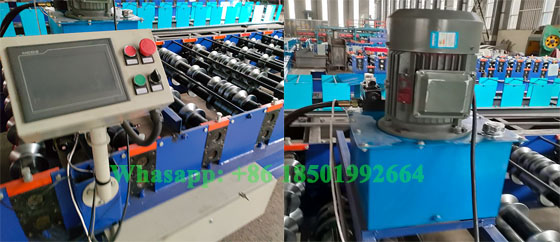

Control system : PLC Control Box
Cutting way : Automatic And Manual two control way
Voltage: 380V/50HZ,3PH ( also can do based on your requirement)
