Metal Roofing Products Machine 750H25
  • Metal Roofing Products Machine 750H25

Metal Roofing Products Machine 750H25

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Machine Name: Metal Roofing Products Machine 750H25

1, Working Flow of Metal Roofing Products Machine 750H25

    De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

2, Main description of Metal Roofing Products Machine 750H25:

    1). Processing Material: PPGI,GI

    2). Processing Thickness(mm): 0.3-0.7mm

    3). Material of Rollers: 45# steel, with hard chrome coated

    4). Diameter of Shaft: 75mm

    5). Production Speed: 0-20m/min

    6). Roller Driven: Decelerating Motor Chain Transmission

    7). Cutting Model: Hydraulic Profile Cutting

    8). Length Measurement: Encoder

    9). Control Style: PLC

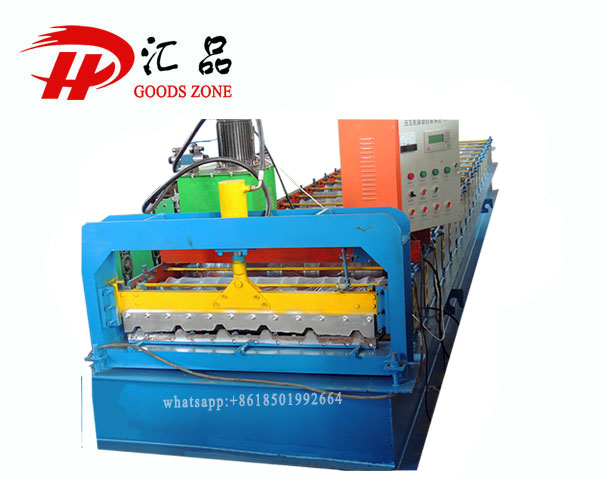

3, Metal Roofing Products Machine 750H25 with its product:

Metal Roofing Products Machine 750H25.jpg

4, Uncoiler of Metal Roofing Products Machine 750H25:

Metal Roofing Products Machine 750H25.JPG
