Kirby Style Galvanized Roofing Panel Machine
  • Kirby Style Galvanized Roofing Panel Machine

Kirby Style Galvanized Roofing Panel Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Product Name: Kirby Style Galvanized Roofing Panel Machine

1, Kirby Style Galvanized Roofing Panel Machine Advantage:

   Save space, more convenient

   Easy operate, low maintenance cost

   Stable and durable

   Low cost, high strength, short building period and re-cycle use

   Save materials, no waste

   Able to deal with stainless materials

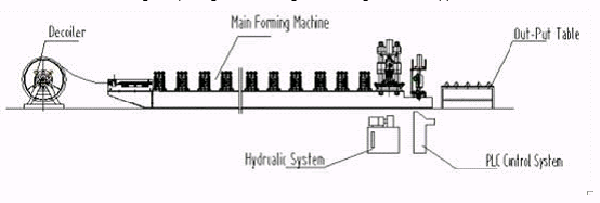

2, Kirby Style Galvanized Roofing Panel Machine Flow charl:

Kirby Style Galvanized Roofing Panel Machine.gif

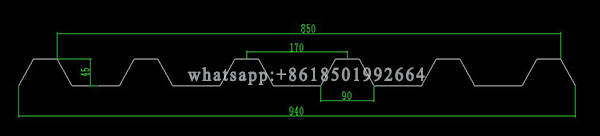

3, Kirby Style Galvanized Roofing Panel Machine Profile drawing:

Kirby Style Galvanized Roofing Panel Machine.jpg

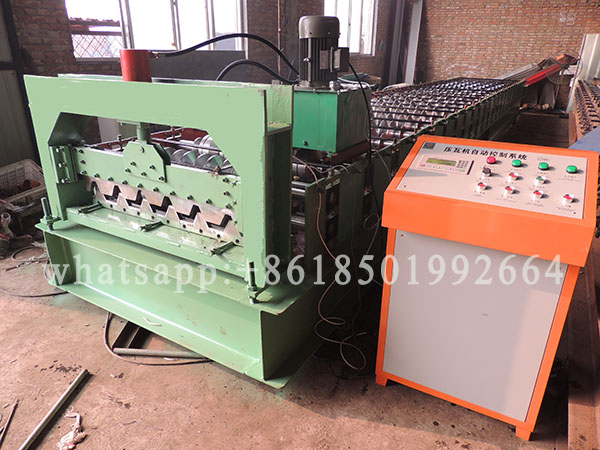

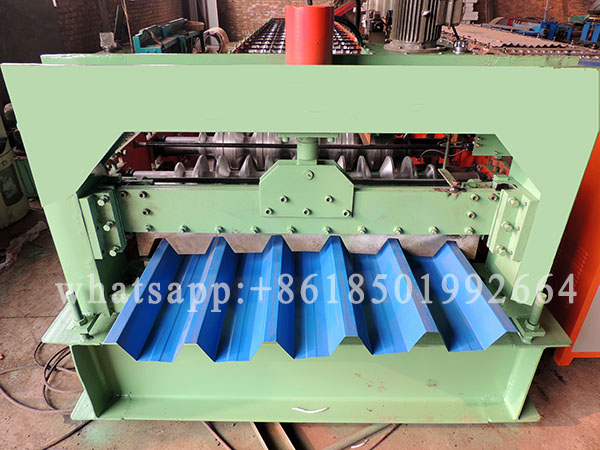

4, Kirby Style Galvanized Roofing Panel Machine:

   Feeding materials width: 1250mm

   Effective width: 850mm

   Suitable for materials thickness: 0.3-0.8mm

   Shaft materials: 45# Steel

   Shaft diameter: 75mm

   Drive way： By chain

   Chain size: 1.0inch

   Shaft station: 18 Stations

   Main motor is 4KW or 5.5KW

   Forming speed: 8-15m/min

Kirby Style Galvanized Roofing Panel Machine.JPG

Kirby Style Galvanized Roofing Panel Machine.JPG

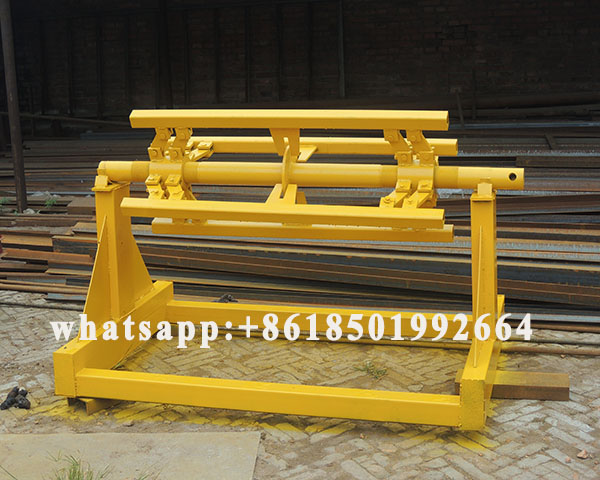

5, Kirby Style Galvanized Roofing Panel Machine's Decoiler:

Kirby Style Galvanized Roofing Panel Machine.JPG

More details about Kirby Style Galvanized Roofing Panel Machine, welcome to contact us!


+86 18501992664
