Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine

  Building construction with Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions sheet, helps to create sturdy, aesthetic buildings that save money, time, effort, and skill.

1, Working Flow of Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine:

  De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table

2, Description of Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine:

  1). Processing Material: PPGI,GI

  2). Processing Thickness(mm): 0.3-0.7mm

  3). Material of Rollers: 45# steel, with hard chrome coated

  4). Diameter of Shaft: 75mm

  5). Production Speed: 0-20m/min

  6). Roller Driven: Decelerating Motor Chain Transmission

  7). Cutting Model: Hydraulic Profile Cutting

  8). Length Measurement: Encoder

  9). Control Style: PLC

3, Other details of Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine:

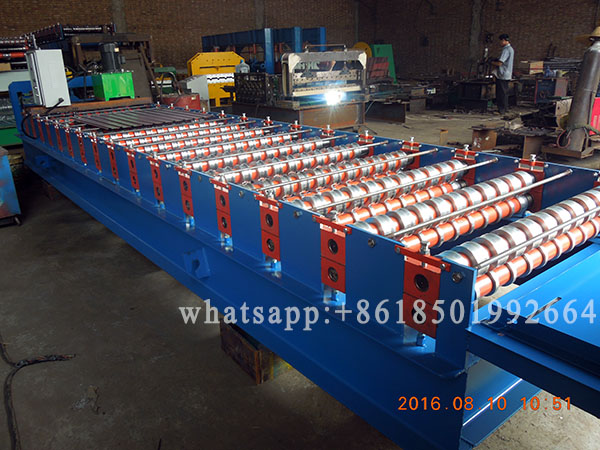

  1), Rollers manufactured from high quality 45# Steel, CNC lathers, heat treatment

       With black treatment or hard-chrome coating for options

       With feeding material guide, body frame made from 300 H steel or 350 H steel welcidng

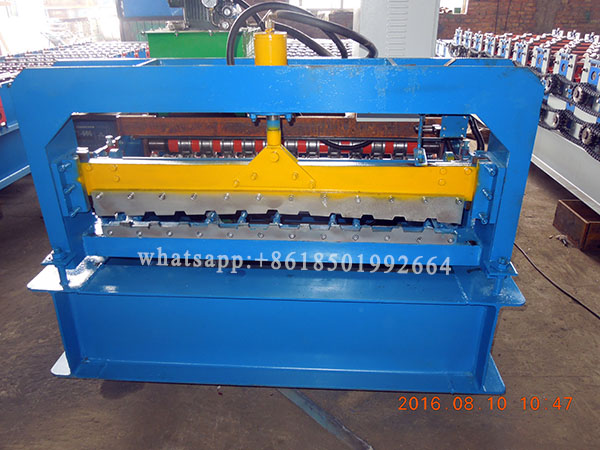

   2), Cutter:

       Made by high quality mold steel Cr12 with heat treatment

       Cutter frame made from high quality 20mm steel plate by welding

       Hydraulic motor: 4KW

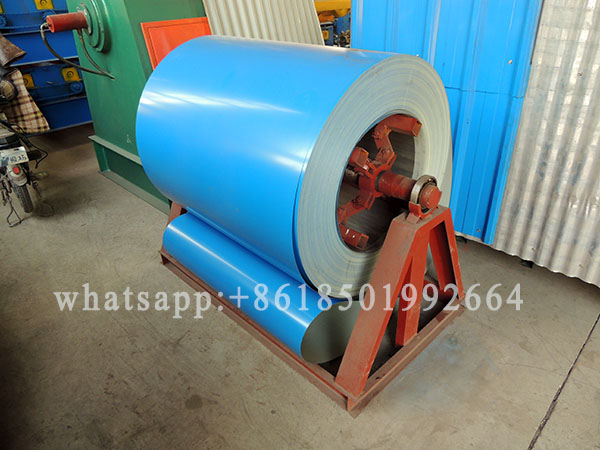

   3), Decoiler:

        Manual decoiler: One set

        Un-powered, manually control steel coil inner bore shrinkage and stop

        Max feeding width: 1250mm Coil range:470-550mm

Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine.JPG

4, Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine

Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine.JPG

Kazakhstan 970 Model Prefabricated Pre Engineered Roofing Solutions Machine.JPG
