Raw Material *Roller Material: 45# steel *Frame: 350H steel;IBR Roof Sheet Roll Forming Machine
IBR Roof Sheet Roll Forming Machine is very popular in the world now, it plays a fairly important role in the steel struction building. As to the shape of this sheet like trapezoid, so we call it trapezoidal tile or IBR sheet. With this IBR roof and wall tile, your house will looks more beautiful and can protect your roofing of house well and give you a safty & warmly home.
Machine Parameter
* Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate;
*Width of the raw material: 914mm-1250mm;
*Thickness: 0.3mm-0.8mm
Main Body
*Roller Station: 13 rows *Diameter of Shaft: 75mm, 45# steel;
*Operate: Manual and Automatic; *Working Speed: 8-15m/min
*Size(L*W*H): about 8700*1550*1510mm
Power
*Motor Power: 4KW, Hydraulic Power: 4KW
*Voltage: 380V 50HZ 3Phases or Customization
*Driving Way: By Chain

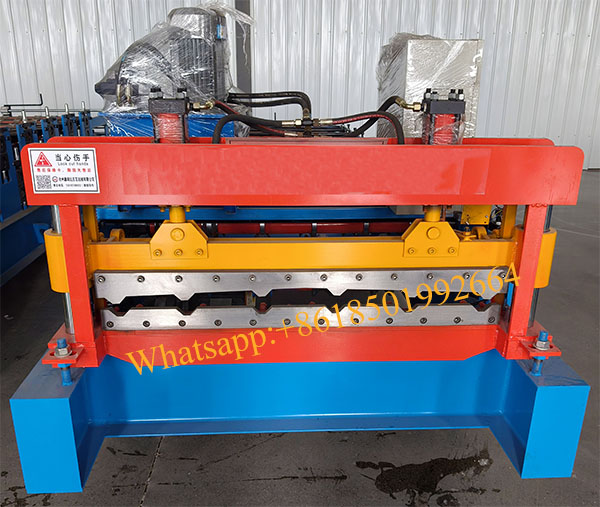

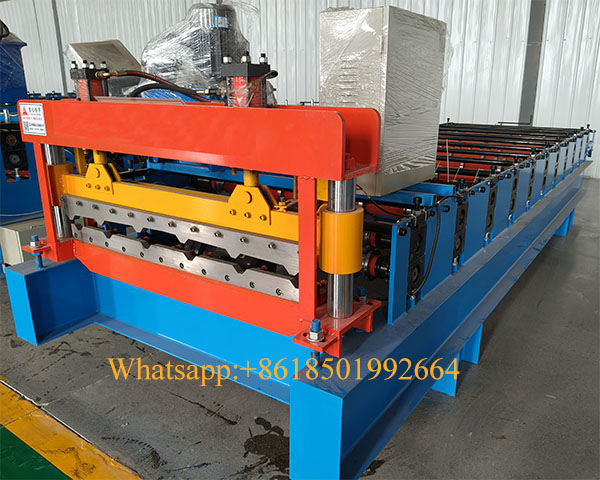

Factory Real Machine Pictures
