Double Layers Ag Panel & R Panel Roll Forming Machine
  • Double Layers Ag Panel & R Panel Roll Forming Machine

Double Layers Ag Panel & R Panel Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

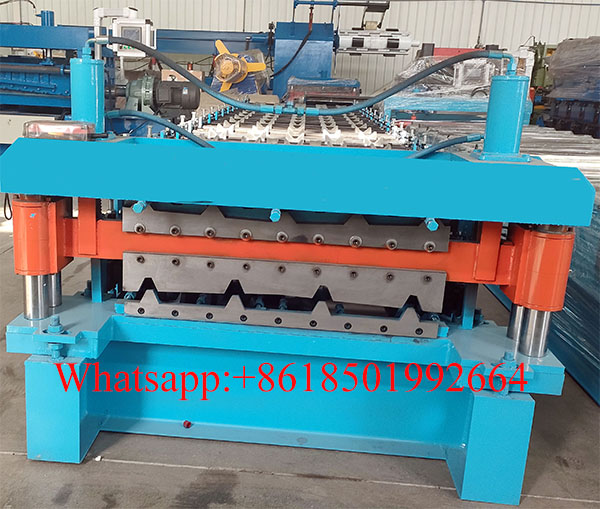

Double Layers Ag Panel & R Panel Roll Forming Machine


  This double layer roofing panel machine can produce two different profile of roofing panel. The finished roof tile width can be design according to customer's  requirements. We also can produce the roofing sheet roll forming machine feeding different width of raw material, such as 914mm、1000mm、1200mm、1219mm、1250mm and 1450mm ect.

Specification Of Double Layer Roof Panel Roll Forming Machine

* Suitable Material: colored steel plate, galvanized plate, or aluminium plate
* Material Thickness: 0.3~0.8mm *Material Width: 43 Inch （according to the profile)

* Diameter of Shaft: 75mm * Roller Station: 14 Steps+15 Steps （according to the profile)
* Sidewall Thickness: 18mm  *Main Frame: 350H Steel

* Motor Power: 5.5KW +4KW *Speed: 8-15m/min
*Cutting Device: Hydraulic Cutting *Material Of Blade: Cr12
* Druve Way: By Chain

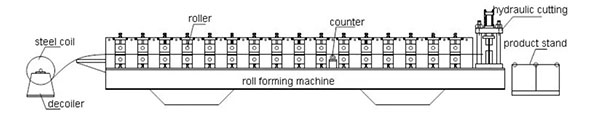

Working Flow Of Double Layer Roof Panel Roll Forming Machine

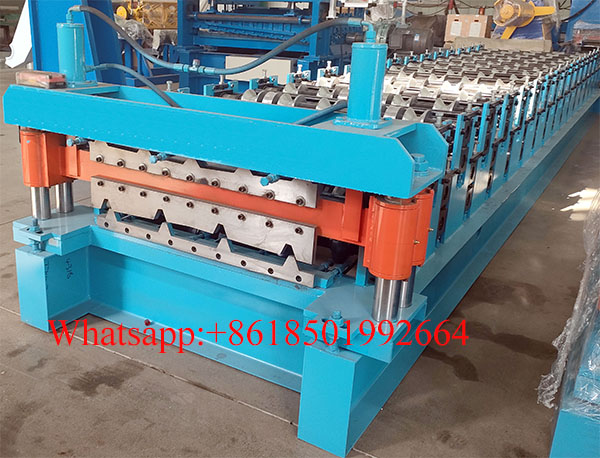

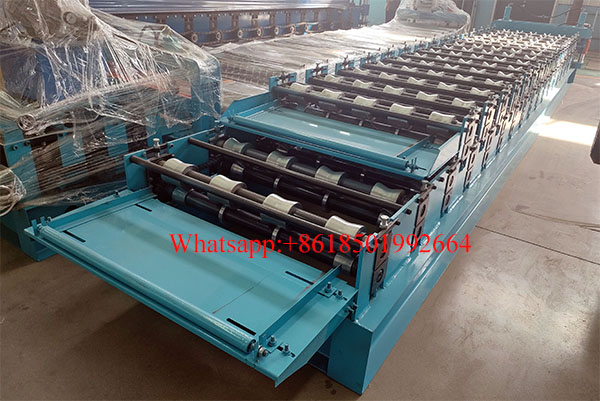

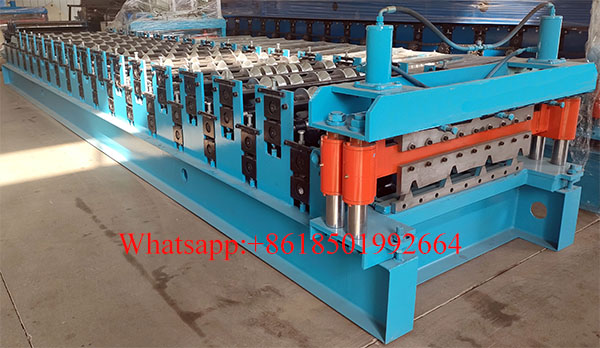

More Pictures Of Double Layer Roof Panel Roll Forming Machine


Different Kind Of Roofing Sheet
We can design different kind of roofing panel machine according to customer's requirements

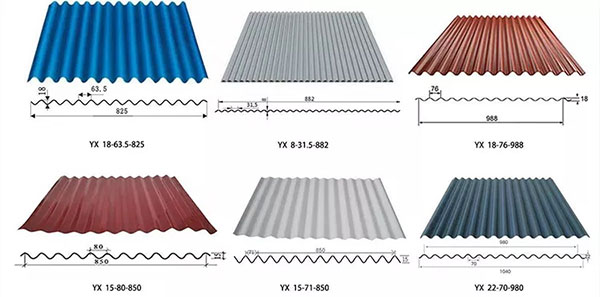

Corrugated Sheet(Water Wave Panel)

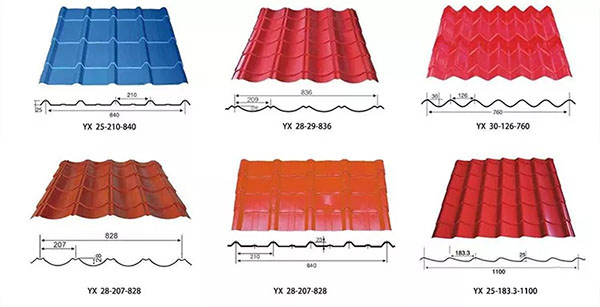

Glazed Roofing Sheet (Step Panel)

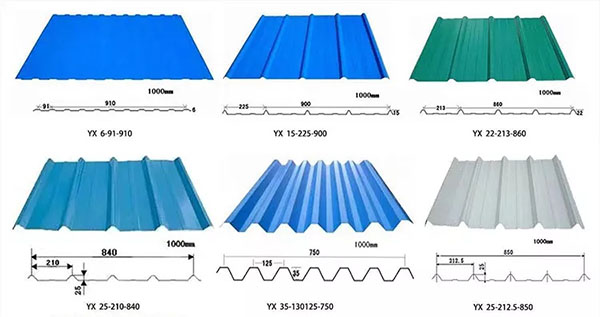

Trapezoidal Roofing Panel(IBR Sheet)

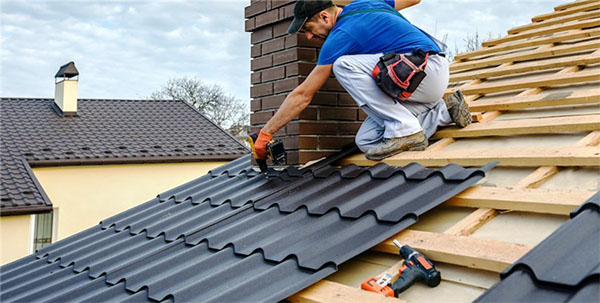

Application
