C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter

Description

C21 Colour Coated Tile Profile Roofing Sheets Panel has been used extensively by the construction industry throughout the World for nearly two centuries. Because of its excellent corrosion resistances, it has become the preferred material for a wide range of construction uses, particularly roofing and walling.

1, C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine Technical dates:

Suitable for materials thickness: 0.3-0.8mm

Shaft materials: 45# Steel

Shaft diameter: 75mm

Motor driving, Gear chain transmission, 15 steps

Main motor is 4KW

Forming speed: 8-15m/min

Pump Station: 4KW

Wall Plate: 350 H Steel

Voltage: 380V, 50hz, 3 PH ( Also can customize)

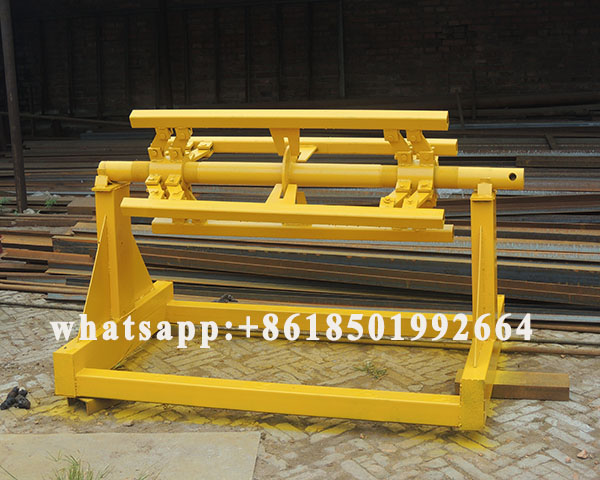

2, C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine Decoiler:

Manual decoiler: One set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1250mm Coil range:470-550mm

C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine.JPG

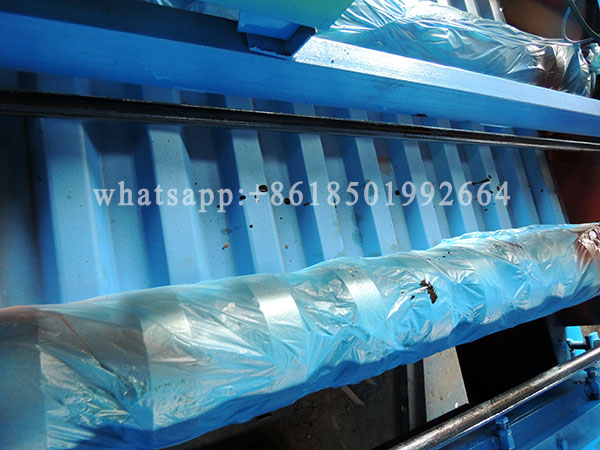

3, C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine Profile:

C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine.jpg

4, C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine Roller:

Rollers manufactured from high quality 45# Steel, CNC lathers, heat treatment

With black treatment or hard-chrome coating for options

C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine.JPG

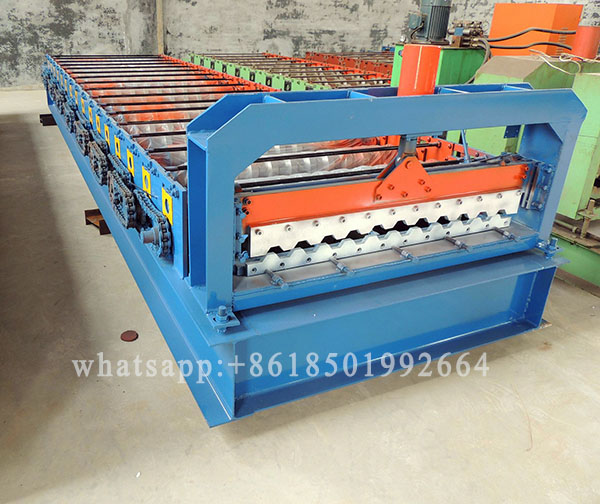

5, C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine:

C21 Colour Coated Tile Profile Roofing Sheets Panel Roll Forming Machine.JPG
