1), Raw material: Color Steel Sheet Coil/Glavanized Steel Coil
2), Feeding Width :According to confirmed sheet drawing
3), Effective width :According to confirmed sheet drawing
4), Thickness :0.3-0.7mm
5), Dimension of machine: About 7.0m*1.4m*1.3m
6), Shaft station : 14 Stations
7), Rolling speed : 0-20m/min
8),Transmission: By chain
9), Size of Chain : 1.0 inch
10), Material of Frame : 300 H steel welding
11), Thickness of middle plate : 16mm
12), Diameter of Shaft :70 mm
13), Shaft materials : 45# Steel plated hard
14), Material of Roller: 45# Steel plated hard
15),Cutter materials: GCr12 steel with quenched treated 60-62°C

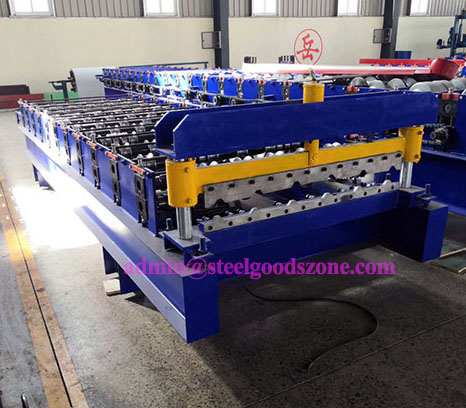

1), Main Forming Body: 1 Set
2), Hydraulic Cutter: 1 Set
3), PLC Control device: 1 Set
4), Pump station: 1 Set
5), Motor:1Set
6), Feeding Device: 1 Set
7), Manual un-coiler for steel coil(5tons)：1 Sets

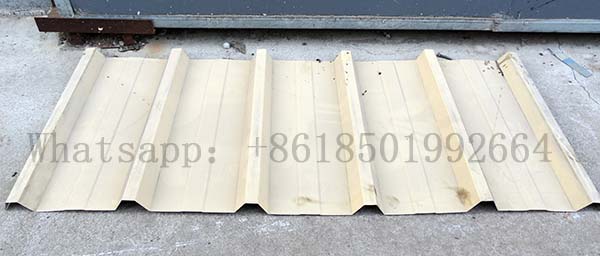

4, Machine product:
