| Products Name | Aluminum-Zinc Ribspan Long Span Roof Plate Machine |
| Main Size | About 6.5m*1.4m*1.3m |
| Application | Aluminum-Zinc Ribspan Long Span Roof Plate Machine's Product are widely use for warehouse or construction. |
| Feeding Materials | Color Steel Coil Sheet and Galvanized steel Sheet |
| Materials Thickness | 0.3-0.8mm |
| Wall Panel | 16mm |
| Drive way | By chain |
| Chain size | 1 inch |
| Control Model | Full automatic control and Manual control |
| Big Frame | 350 H Steel |
| Forming Shaft Station: | 15-16 Stations |
| Roller Materials: | 45# Steel |
| Machine's Color | can customize |
| Voltage | 380V/50HZ/3PH ( Also can customize) |
| Main Motor | 5.5KW |

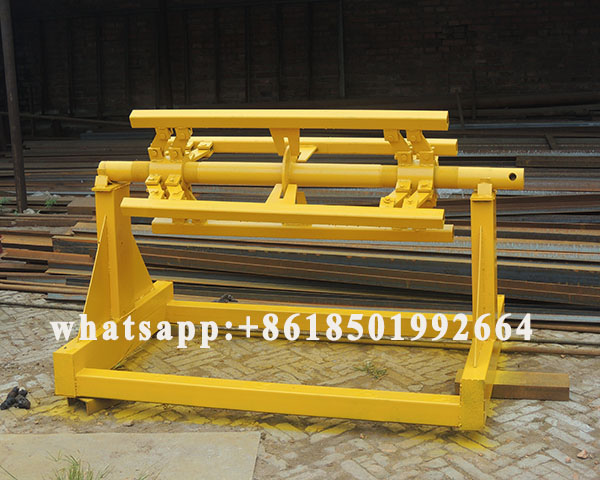

| Decoiler | one manual control for free |
| Working Flow | Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand |

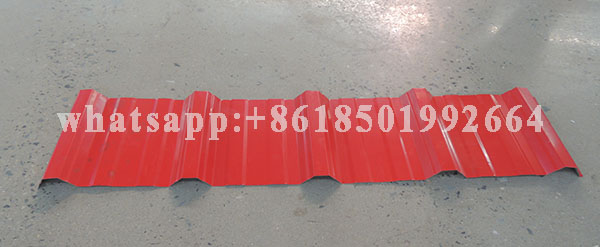

1), Aluminum-Zinc Ribspan Long Span Roof Plate Machine produce sheet profile:

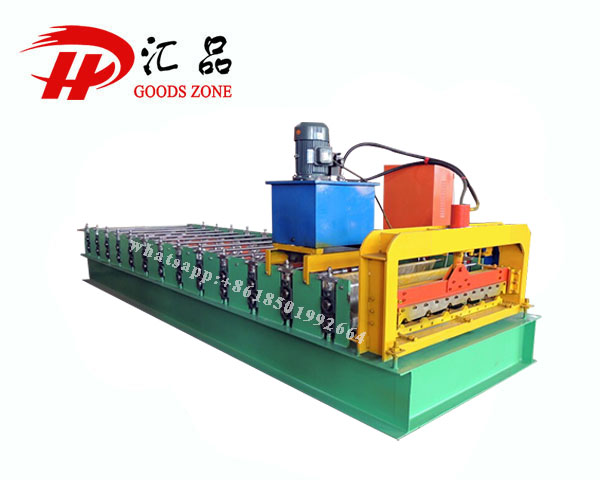

2), Aluminum-Zinc Ribspan Long Span Roof Plate Machine show:
More details about Aluminum-Zinc Ribspan Long Span Roof Plate Machine, welcome to contact us! | |
