Kliplok Roofing Crimp Curving Machine
  • Kliplok Roofing Crimp Curving Machine

Kliplok Roofing Crimp Curving Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

1, Product Name: Kliplok Roofing Crimp Curving Machine

Machine size: 520mm*520mm*1200mm

Feeding width: 914-1450mm

Equipment weight: 1.0T

Material of shaft: 45#steel adjustable treatment

Out diameter of shaft: φ70mm

Material of roller: Cr12, hard chromize coated HRC58-60°C

Number of forming rollers: 3-4 rows

Main frame: 300 H steel

Thickness of medium plate: 16mm

Certification: ISO9001

Thickness of formed steel: 0.3-0.8mm

Main motor power: 4 KW

Forming speed: 8-10mm/min

Feeding plate thickness: 0.25-0.8mm

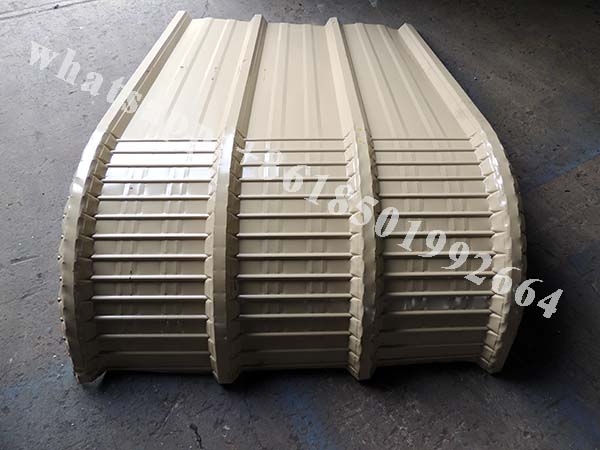

2, Kliplok Roofing Crimp Curving Machine Finished Product:

Kliplok Roofing Crimp Curving Machine.JPG

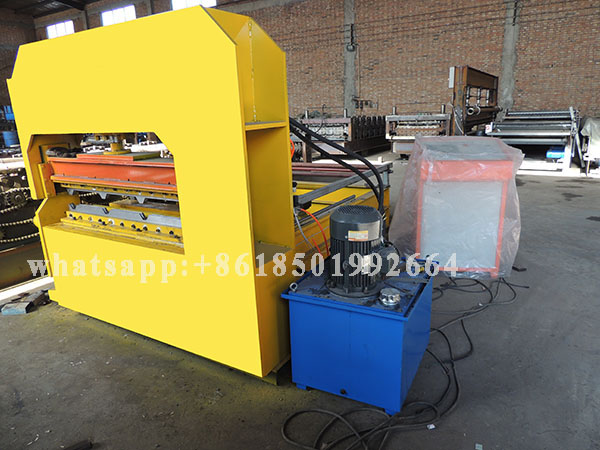

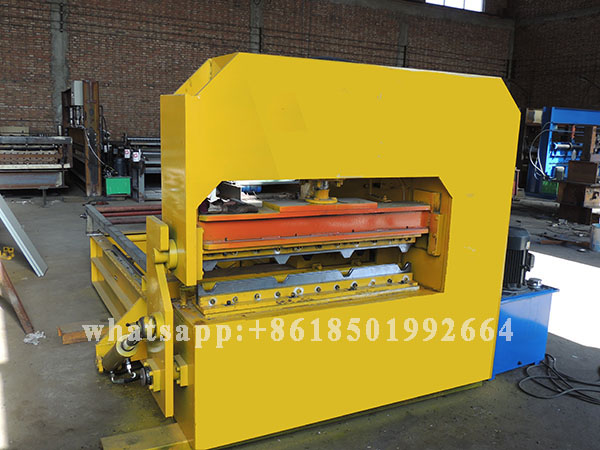

3, Kliplok Roofing Crimp Curving Machine:

Kliplok Roofing Crimp Curving Machine.jpg

Kliplok Roofing Crimp Curving Machine.jpg
