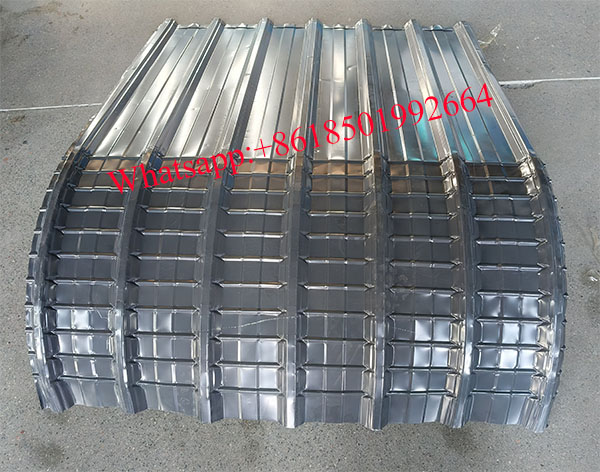

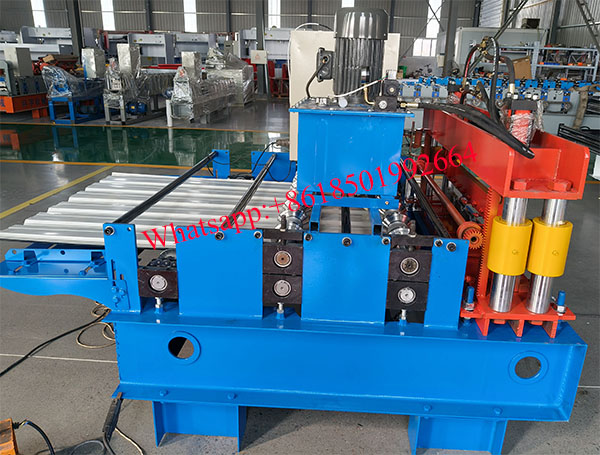

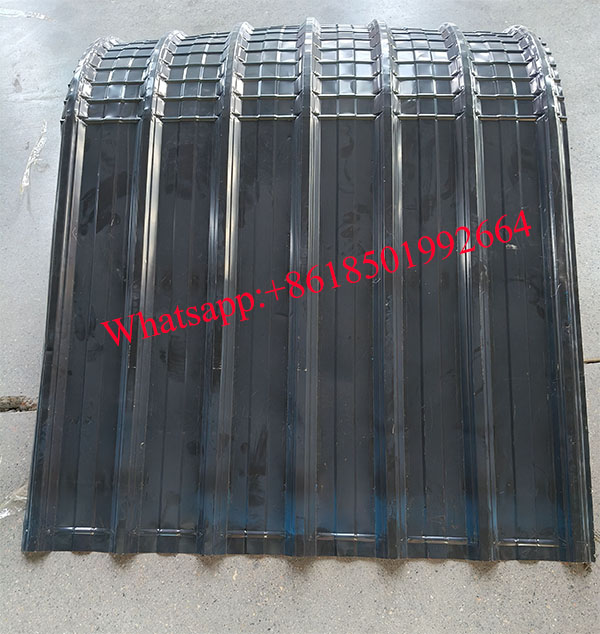

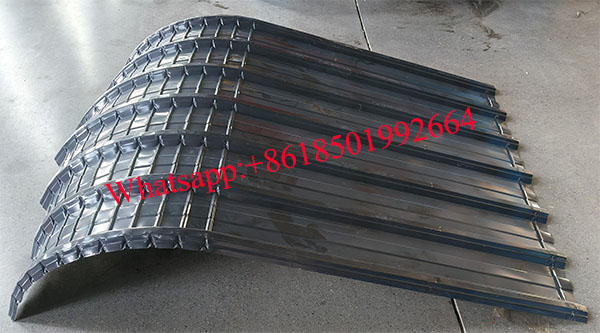

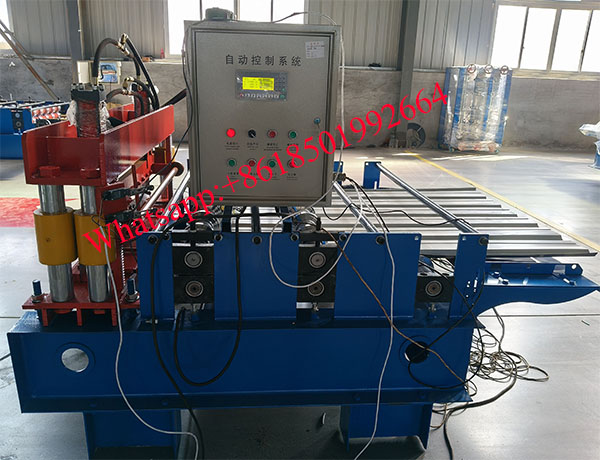

This machine used to crimping the straight sheet to curved sheet. As normal, it need work with a roll forming machine together, roll forming machine produce the straight sheet first, then produce arched sheet with this crimping machine. It also can design machine do roll forming and crimping sheet by one machine. This machine can produce different kind of arched panel, and the radian of panel, and the radian of panel can be adiustment according to client's requirements.
*Suitable material: colored steel plate, galvanized plate, or aluminium plate
*Material Thickness: 0.3-0.7mm
*Diameter of shaft： 70mm
*Roller Station: 3 Station
*Sidwall Thickness: 18mm
*Main Frame: Square Pipe Stee;
*Motor Power: 3KW+4KW
*Drive Way: By Chain
*Main frame: 350H steel
*Material Of Press Mould: Cr12
