*Suitable Material: Colored Steel Plate/Galvanized Plated/Aluminium Plate
*Material Thickness: 0.3~3mm(slitting thickness from 0.3mm to 0.9mm)
*Material Width: Max 1300mm
*Max Slitting 6 Narrow Pieces, the slitting width can be adjustment
*Motor Power: 4KW
*Speed: 8-15m/min
*Mater Of Slitter: Cr12
*Drive Way: By Chain
*Cutting Way: Hydraulic
*Main Body: 300H Steel
*PLC System: Delta Brand With Touch Screen
*Hydraulic Pump: 3KW
*Diameter of Shaft: 90mm
*Leveling Shaft: Up Layer 7 Shaft, Down Layer 8 Shaft Cutting To Length Machine Feature
*Low Cost*High Efficiency*18 Months Warranty
*Reliable Working* Low Energy Consumption *Easy to Operate
*Long Working Life*Accurate*No noise

Cut To Length Machine

Cut To Lenght Machine

This cutting to length machine use leveling, slitting and cutting the metal panel. It can max cutting and leveling 0.3~3mm thickness, 1300mm width panel; max slitting 0.3-0.9mm thickness material, the slitting width can be adjustment according to customer's requirements.

Specification Of Metal Panel Cutting To Length Machine

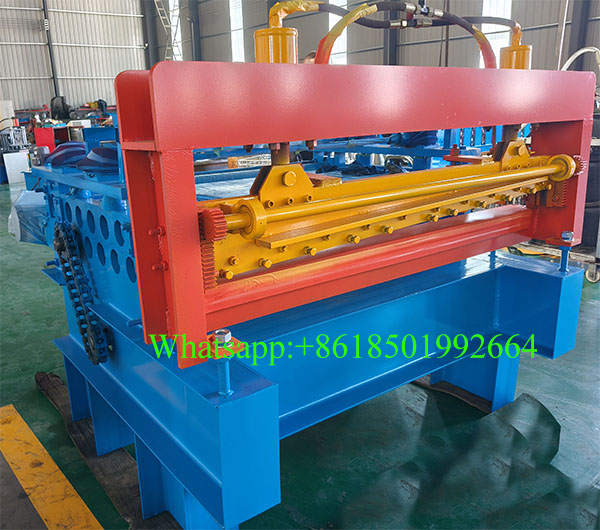

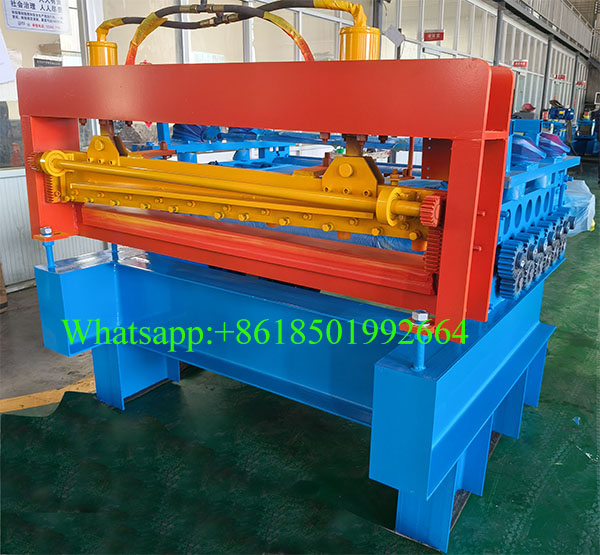

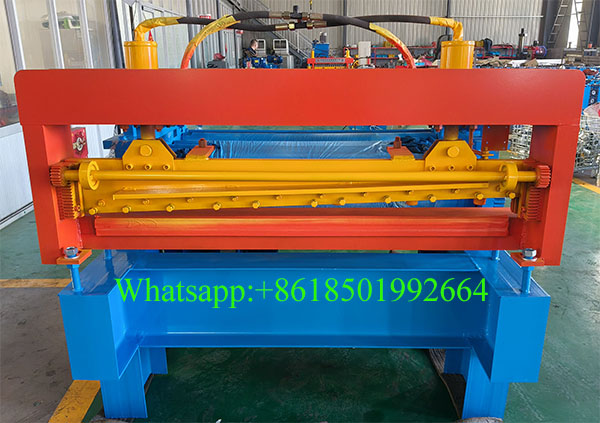

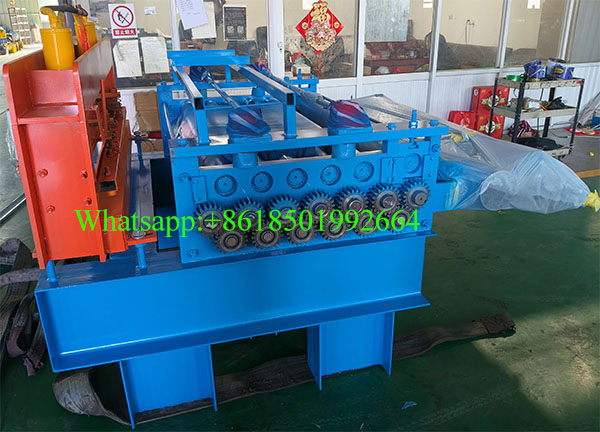

More Picture of Cutting To Lengtj Machine
