Wall Panels and Trapezoid Roll Forming Machine
This double layer roofing panel machine can produce teo different profile of roofing panel. The finished roof tile width can be design according to customer's requirements. We also can produce the roofing sheet roll forming machine feeding different width of raw material, such as 914mm, 1000mm, 1200mm, 1219mm, 1250mm and 1450mm ect.
Specification Of Double Layer Roof Panel Roll Forming Machine
*Suitable Material: colored steel plate, glavanized plate, or aluminium plate
*Material Thickness: 0.3~0.8mm *Material Width: 43 Inch(according to the prodile)
*Diameter of Shaft: 75mm *Roller Station: 14 steps+15 steps(according to the profile)
*Sidewall Thickness: 18mm *Main Frame: 350H steel
*Motor Power: 5.5KW+4KW *Speed: 8-15m/min
*Cutting Device: Hydraulic Cutting * Material of Blade: Cr12
*Drive Way: By Chain

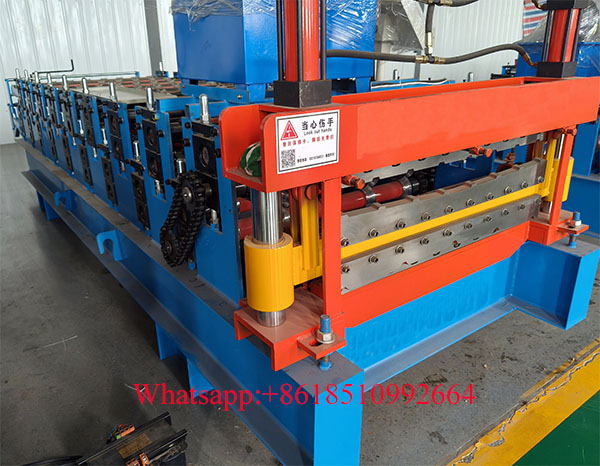

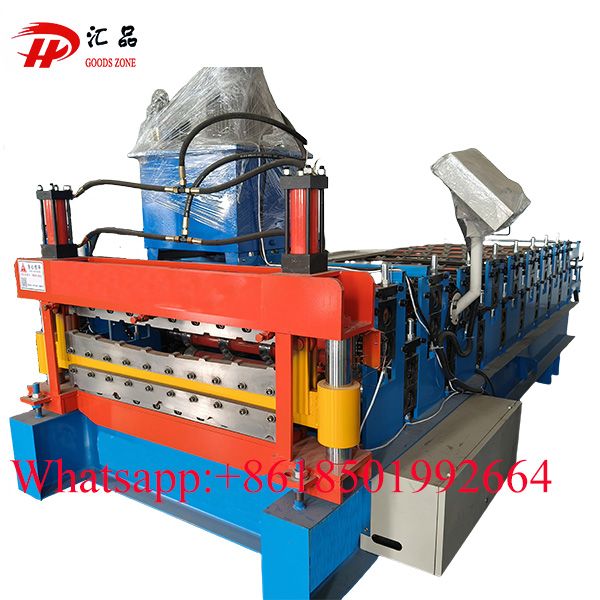

Factory Real Machine Pictures
