Three Layers Metal Roofing Sheet Roll Forming Machine

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

Three Layers Metal Roofing Sheet Roll Forming Machine

  This three layer roofing panel machine can produce two different profile of roofing panel. The finish roof tile width can be design according to customer's requirements. We also can produce the roofing sheet roll forming machine feeding different width of raw material, such as 914mm、1000mm、1200mm、1219mm、1250mm and 1450mm ect.

Specification Of Three Layers Metal Roofing Panel Machine

*Suitable Material: Colored steel plate, galvanized plate, or aluminium plate
*Material Thickness: 0.3-0.8mm
*Material Width: According to the profile
*Feeding Widtj: According to the profile
*Diameter of shaft:75mm
*Drive Way: By Chain
*Sidewall Thickness: 20mm
*Main frame: 400H steel
*Motor Power:7.5KW+5.5KW
*Speed: 8-15m/min
*Cutting Device: Hydraulic Cutting
*Material Of Blade: Cr12
*Roller Station: 9 steps+9 steps+11 steps (according to the profile)

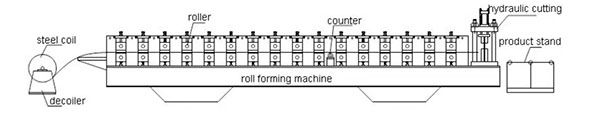

Working Flow Of Three Layer Metal Roofing Panel Roll Forming Machine

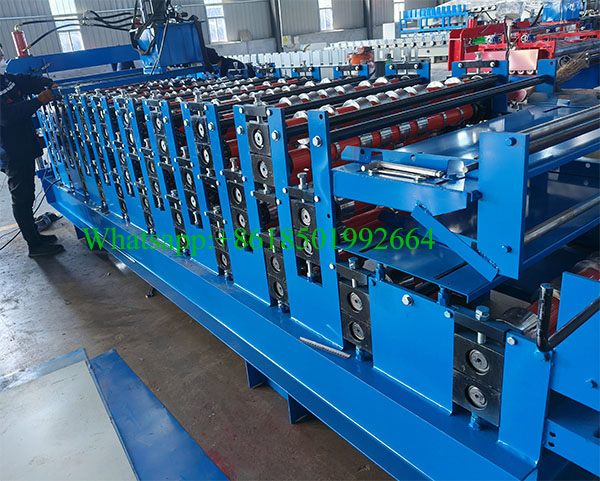

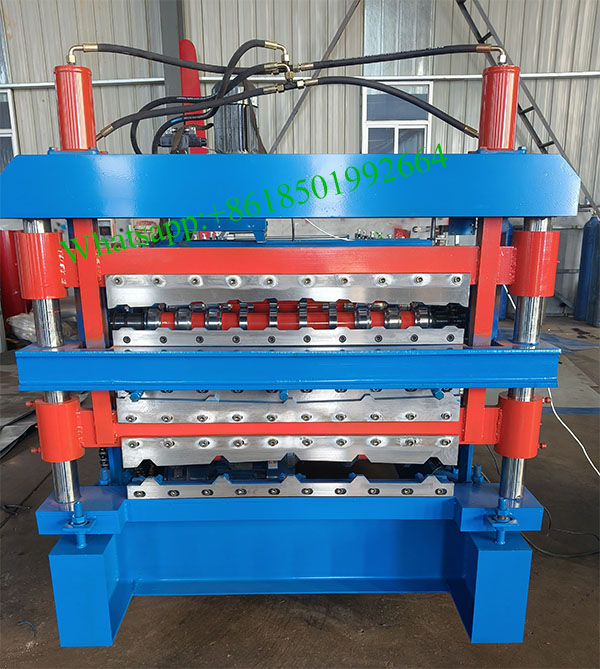

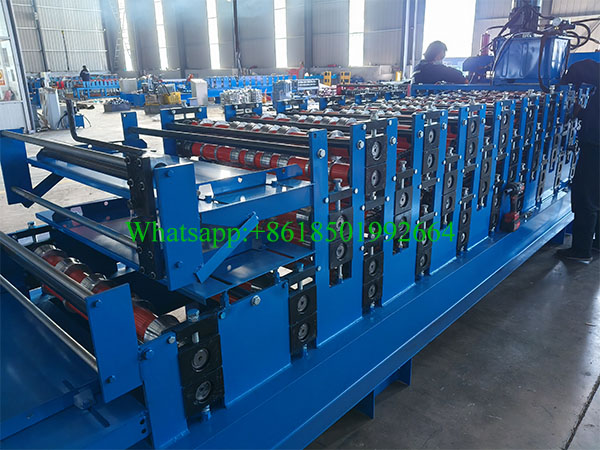

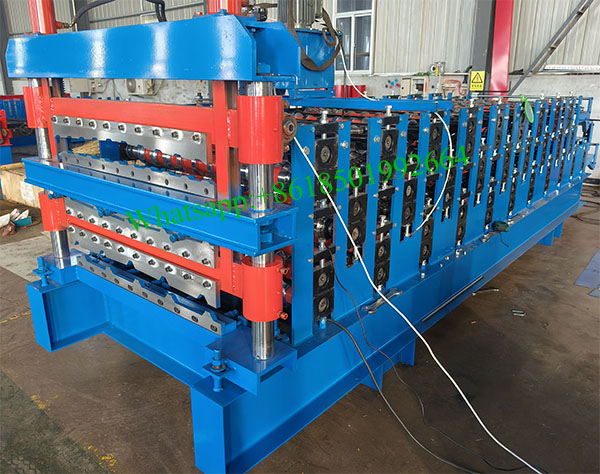

Factory real shot machine pictures

We can design different kind of roofing panel machine according to customer's requirements

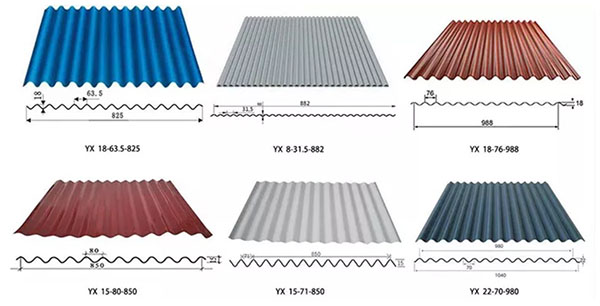

Corrugated Sheet (Water Wave Panel)

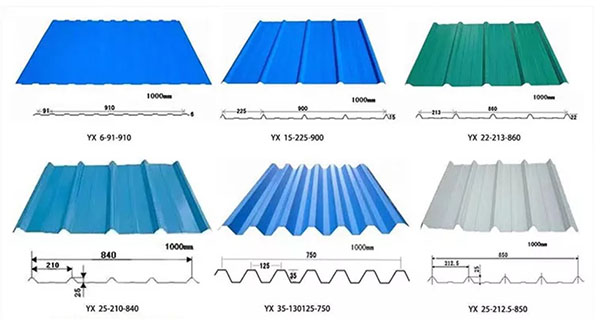

Trapezoidal Roofing Panel (IBR Sheet)

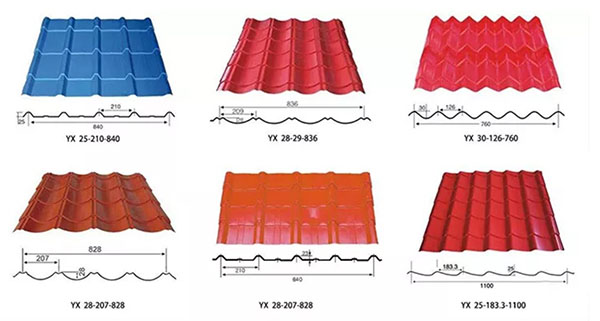

Glazed Roofing Sheet (Step Panel)
