TR5 And TR6 Double Layer Machines Produced for Peruvian Customers
  • TR5 And TR6 Double Layer Machines Produced for Peruvian Customers

TR5 And TR6 Double Layer Machines Produced for Peruvian Customers

Steel Equipment,Steel Products, Plastic Film Rolls Exporter
Description

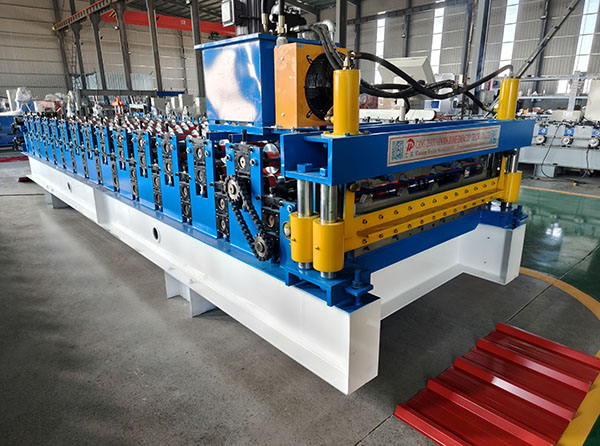

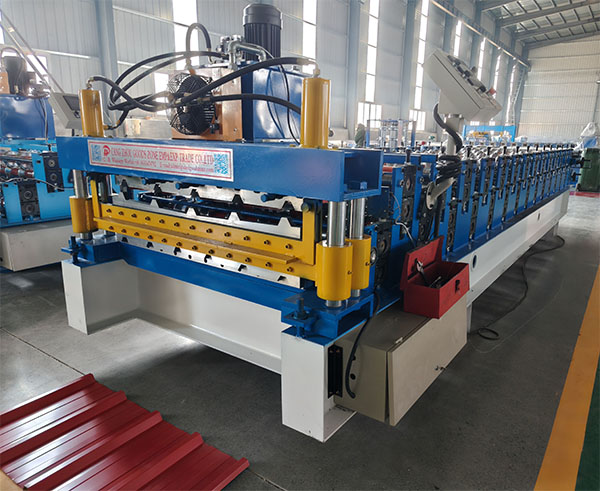

TR5 And TR6 Double Layer Machines Produced for Peruvian Customers


This double-layer roof sheet machine can produce two different shapes of roof sheets, and the finished roof tile can be designed according to customer requirements. We can also produce roof sheet roll forming machines with different widths of raw materals, such as 914mm、1000mm、1200mm、1219mm(1220mm）、1250mm、1450mm、etc.


1), Machine Details

  1.Materials Grade: Color Steel Coil/Gavlanized Steel Coil
  2. Feeding Width: According to your requirements
  3.Effective Width: According to the profile
  4.Thickness: 0.28-0.8mm
  5.Motor Power: 5.5KW+4KW
  6.SideWall Thickness: 18mm
  7.Main Frame: 350H Steel
  8.Drive Way: By Chain

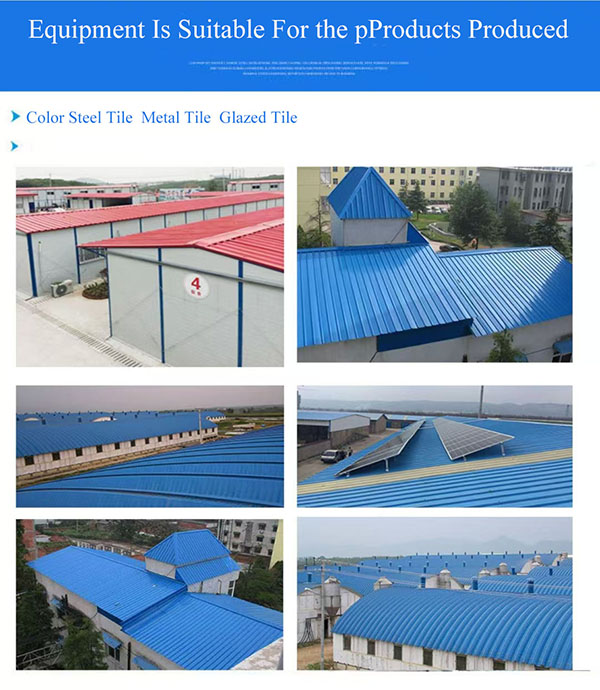

Roof Tile Function

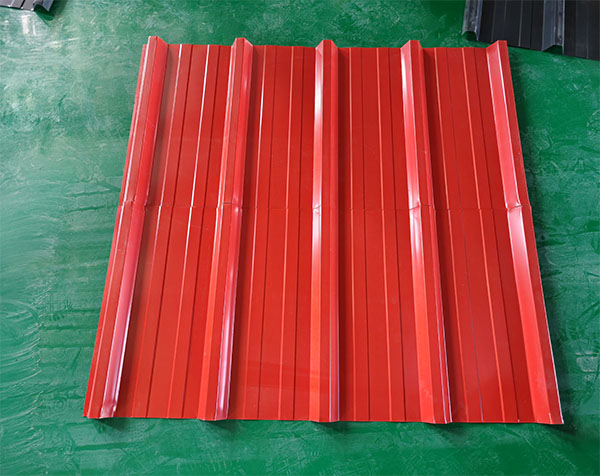

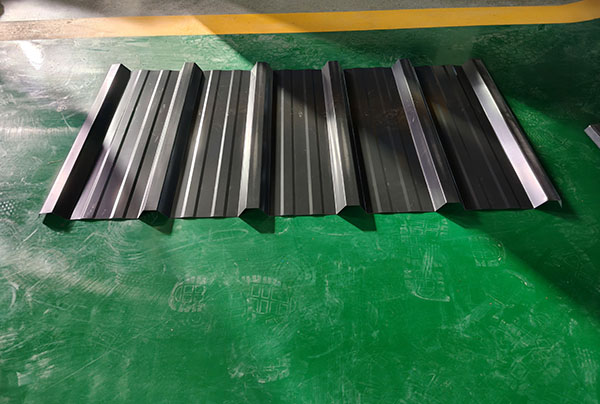

Finish Machine& Sheets
